GitLab Container Registry (FREE)

• Introduced in GitLab 8.8.
• Docker Registry manifest v1 support was added in GitLab 8.9 to support Docker versions earlier than 1.10.
• Starting in GitLab 8.12, if you have two-factor authentication enabled in your account, you need to pass a personal access token instead of your password to sign in to the Container Registry.
• Support for multiple level image names was added in GitLab 9.1.
• The group-level Container Registry was introduced in GitLab 12.10.
• Searching by image repository name was introduced in GitLab 13.0.

NOTE: If you pull container images from Docker Hub, you can also use the GitLab Dependency Proxy to avoid running into rate limits and speed up your pipelines.

With the Docker Container Registry integrated into GitLab, every GitLab project can have its own space to store its Docker images.

You can read more about Docker Registry at https://docs.docker.com/registry/introduction/.

This document is the user guide. To learn how to enable the Container Registry for your GitLab instance, visit the administrator documentation.

View the Container Registry

You can view the Container Registry for a project or group.

1. Go to your project or group.
2. Go to Packages & Registries > Container Registry.

You can search, sort, filter, and delete containers on this page. You can share a filtered view by copying the URL from your browser.

Only members of the project or group can access a private project's Container Registry.

If a project is public, so is the Container Registry.

Use images from the Container Registry

To download and run a container image hosted in the GitLab Container Registry:

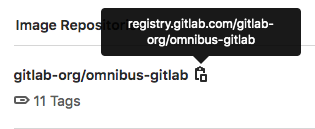

1. Copy the link to your container image:

   • Go to your project or group's Packages & Registries > Container Registry and find the image you want.
   • Next to the image name, click the Copy button.



2. Use docker run with the image link:

   docker run [options] registry.example.com/group/project/image [arguments]

For more information on running Docker containers, visit the Docker documentation.

Image naming convention

Images follow this naming convention:

<registry URL>/<namespace>/<project>/<image>

If your project is gitlab.example.com/mynamespace/myproject, for example, then your image must be named gitlab.example.com/mynamespace/myproject/my-app at a minimum.

You can append additional names to the end of an image name, up to three levels deep.

For example, these are all valid image names for images within the project named myproject:

registry.example.com/mynamespace/myproject:some-tag

registry.example.com/mynamespace/myproject/image:latest

registry.example.com/mynamespace/myproject/my/image:rc1

Build and push images by using Docker commands

To build and push to the Container Registry, you can use Docker commands.

Authenticate with the Container Registry

Before you can build and push images, you must authenticate with the Container Registry.

To authenticate, you can use:

• A personal access token.
• A deploy token.

Both of these require the minimum scope to be:

• For read (pull) access, read_registry.
• For write (push) access, write_registry.

To authenticate, run the docker command. For example:

docker login registry.example.com -u <username> -p <token>

Build and push images by using Docker commands

To build and push to the Container Registry:

1. Authenticate with the Container Registry.

2. Run the command to build or push. For example, to build:

   docker build -t registry.example.com/group/project/image .

   Or to push:

   docker push registry.example.com/group/project/image

To view these commands, go to your project's Packages & Registries > Container Registry.

Build and push by using GitLab CI/CD

Use GitLab CI/CD to build and push images to the Container Registry. Use it to test, build, and deploy your project from the Docker image you created.

Authenticate by using GitLab CI/CD

Before you can build and push images by using GitLab CI/CD, you must authenticate with the Container Registry.

To use CI/CD to authenticate, you can use:

• The CI_REGISTRY_USER CI/CD variable.

  This variable has read-write access to the Container Registry and is valid for one job only. Its password is also automatically created and assigned to CI_REGISTRY_PASSWORD.

  docker login -u $CI_REGISTRY_USER -p $CI_REGISTRY_PASSWORD $CI_REGISTRY

• A CI job token.

  docker login -u $CI_JOB_USER -p $CI_JOB_TOKEN $CI_REGISTRY

• A deploy token with the minimum scope of:

  • For read (pull) access, read_registry.
  • For write (push) access, write_registry.

  docker login -u $CI_DEPLOY_USER -p $CI_DEPLOY_PASSWORD $CI_REGISTRY

• A personal access token with the minimum scope of:

  • For read (pull) access, read_registry.
  • For write (push) access, write_registry.

  docker login -u <username> -p <access_token> $CI_REGISTRY

Configure your .gitlab-ci.yml file

You can configure your .gitlab-ci.yml file to build and push images to the Container Registry.

• If multiple jobs require authentication, put the authentication command in the before_script.

• Before building, use docker build --pull to fetch changes to base images. It takes slightly longer, but it ensures your image is up-to-date.

• Before each docker run, do an explicit docker pull to fetch the image that was just built. This is especially important if you are using multiple runners that cache images locally.

  If you use the Git SHA in your image tag, each job is unique and you should never have a stale image. However, it's still possible to have a stale image if you re-build a given commit after a dependency has changed.

• Don't build directly to the latest tag because multiple jobs may be happening simultaneously.

Container Registry examples with GitLab CI/CD

If you're using Docker-in-Docker on your runners, this is how your .gitlab-ci.yml should look:

build:
  image: docker:19.03.12
  stage: build
  services:
    - docker:19.03.12-dind
  script:
    - docker login -u $CI_REGISTRY_USER -p $CI_REGISTRY_PASSWORD $CI_REGISTRY
    - docker build -t $CI_REGISTRY/group/project/image:latest .
    - docker push $CI_REGISTRY/group/project/image:latest

You can also make use of other CI/CD variables to avoid hard-coding:

build:
  image: docker:19.03.12
  stage: build
  services:
    - docker:19.03.12-dind
  variables:
    IMAGE_TAG: $CI_REGISTRY_IMAGE:$CI_COMMIT_REF_SLUG
  script:
    - docker login -u $CI_REGISTRY_USER -p $CI_REGISTRY_PASSWORD $CI_REGISTRY
    - docker build -t $IMAGE_TAG .
    - docker push $IMAGE_TAG

Here, $CI_REGISTRY_IMAGE would be resolved to the address of the registry tied to this project. Since $CI_COMMIT_REF_NAME resolves to the branch or tag name, and your branch name can contain forward slashes (for example, feature/my-feature), it is safer to use $CI_COMMIT_REF_SLUG as the image tag. This is due to that image tags cannot contain forward slashes. We also declare our own variable, $IMAGE_TAG, combining the two to save us some typing in the script section.

Here's a more elaborate example that splits up the tasks into 4 pipeline stages, including two tests that run in parallel. The build is stored in the container registry and used by subsequent stages, downloading the image when needed. Changes to main also get tagged as latest and deployed using an application-specific deploy script:

image: docker:19.03.12
services:
  - docker:19.03.12-dind

stages:
  - build
  - test
  - release
  - deploy

variables:
  # Use TLS https://docs.gitlab.com/ee/ci/docker/using_docker_build.html#tls-enabled
  DOCKER_HOST: tcp://docker:2376
  DOCKER_TLS_CERTDIR: "/certs"
  CONTAINER_TEST_IMAGE: $CI_REGISTRY_IMAGE:$CI_COMMIT_REF_SLUG
  CONTAINER_RELEASE_IMAGE: $CI_REGISTRY_IMAGE:latest

before_script:
  - docker login -u $CI_REGISTRY_USER -p $CI_REGISTRY_PASSWORD $CI_REGISTRY

build:
  stage: build
  script:
    - docker build --pull -t $CONTAINER_TEST_IMAGE .
    - docker push $CONTAINER_TEST_IMAGE

test1:
  stage: test
  script:
    - docker pull $CONTAINER_TEST_IMAGE
    - docker run $CONTAINER_TEST_IMAGE /script/to/run/tests

test2:
  stage: test
  script:
    - docker pull $CONTAINER_TEST_IMAGE
    - docker run $CONTAINER_TEST_IMAGE /script/to/run/another/test

release-image:
  stage: release
  script:
    - docker pull $CONTAINER_TEST_IMAGE
    - docker tag $CONTAINER_TEST_IMAGE $CONTAINER_RELEASE_IMAGE
    - docker push $CONTAINER_RELEASE_IMAGE
  only:
    - main

deploy:
  stage: deploy
  script:
    - ./deploy.sh
  only:
    - main

NOTE: This example explicitly calls docker pull. If you prefer to implicitly pull the built image using image:, and use either the Docker or Kubernetes executor, make sure that pull_policy is set to always.

Using a Docker-in-Docker image from your Container Registry

To use your own Docker images for Docker-in-Docker, follow these steps in addition to the steps in the Docker-in-Docker section:

1. Update the image and service to point to your registry.
2. Add a service alias.

Below is an example of what your .gitlab-ci.yml should look like:

build:
  image: $CI_REGISTRY/group/project/docker:19.03.12
  services:
    - name: $CI_REGISTRY/group/project/docker:19.03.12-dind
      alias: docker
  stage: build
  script:
    - docker build -t my-docker-image .
    - docker run my-docker-image /script/to/run/tests

If you forget to set the service alias, the docker:19.03.12 image is unable to find the dind service, and an error like the following is thrown:

error during connect: Get http://docker:2376/v1.39/info: dial tcp: lookup docker on 192.168.0.1:53: no such host

Using a Docker-in-Docker image with Dependency Proxy

To use your own Docker images with Dependency Proxy, follow these steps in addition to the steps in the Docker-in-Docker section:

1. Update the image and service to point to your registry.
2. Add a service alias.

Below is an example of what your .gitlab-ci.yml should look like:

build:
  image: ${CI_DEPENDENCY_PROXY_GROUP_IMAGE_PREFIX}/docker:19.03.12
  services:
    - name: ${CI_DEPENDENCY_PROXY_GROUP_IMAGE_PREFIX}/docker:18.09.7-dind
      alias: docker
  stage: build
  script:
    - docker build -t my-docker-image .
    - docker run my-docker-image /script/to/run/tests

If you forget to set the service alias, the docker:19.03.12 image is unable to find the dind service, and an error like the following is thrown:

error during connect: Get http://docker:2376/v1.39/info: dial tcp: lookup docker on 192.168.0.1:53: no such host

Delete images

You can delete images from your Container Registry in multiple ways.

WARNING: Deleting images is a destructive action and can't be undone. To restore a deleted image, you must rebuild and re-upload it.

NOTE: Administrators should review how to garbage collect the deleted images.

Delete images from within GitLab

To delete images from within GitLab:

1. Navigate to your project's or group's Packages & Registries > Container Registry.

2. From the Container Registry page, you can select what you want to delete, by either:

   • Deleting the entire repository, and all the tags it contains, by clicking the red {remove} Trash icon.
   • Navigating to the repository, and deleting tags individually or in bulk by clicking the red {remove} Trash icon next to the tag you want to delete.

3. In the dialog box, click Remove tag.

Delete images using the API

If you want to automate the process of deleting images, GitLab provides an API. For more information, see the following endpoints:

• Delete a Registry repository
• Delete an individual Registry repository tag
• Delete Registry repository tags in bulk

Delete images using GitLab CI/CD

WARNING: GitLab CI/CD doesn't provide a built-in way to remove your images, but this example uses a third-party tool called reg that talks to the GitLab Registry API. You are responsible for your own actions. For assistance with this tool, see the issue queue for reg.

The following example defines two stages: build, and clean. The build_image job builds the Docker image for the branch, and the delete_image job deletes it. The reg executable is downloaded and used to remove the image matching the $CI_PROJECT_PATH:$CI_COMMIT_REF_SLUG predefined CI/CD variable.

To use this example, change the IMAGE_TAG variable to match your needs:

stages:
  - build
  - clean

build_image:
  image: docker:19.03.12
  stage: build
  services:
    - docker:19.03.12-dind
  variables:
    IMAGE_TAG: $CI_REGISTRY_IMAGE:$CI_COMMIT_REF_SLUG
  script:
    - docker login -u $CI_REGISTRY_USER -p $CI_REGISTRY_PASSWORD $CI_REGISTRY
    - docker build -t $IMAGE_TAG .
    - docker push $IMAGE_TAG
  only:
    - branches
  except:
    - main

delete_image:
  image: docker:19.03.12
  stage: clean
  services:
    - docker:19.03.12-dind
  variables:
    IMAGE_TAG: $CI_PROJECT_PATH:$CI_COMMIT_REF_SLUG
    REG_SHA256: ade837fc5224acd8c34732bf54a94f579b47851cc6a7fd5899a98386b782e228
    REG_VERSION: 0.16.1
  before_script:
    - apk add --no-cache curl
    - curl --fail --show-error --location "https://github.com/genuinetools/reg/releases/download/v$REG_VERSION/reg-linux-amd64" --output /usr/local/bin/reg
    - echo "$REG_SHA256  /usr/local/bin/reg" | sha256sum -c -
    - chmod a+x /usr/local/bin/reg
  script:
    - /usr/local/bin/reg rm -d --auth-url $CI_REGISTRY -u $CI_REGISTRY_USER -p $CI_REGISTRY_PASSWORD $IMAGE_TAG
  only:
    - branches
  except:
    - main

NOTE: You can download the latest reg release from the releases page, then update the code example by changing the REG_SHA256 and REG_VERSION variables defined in the delete_image job.

Delete images by using a cleanup policy

You can create a per-project cleanup policy to ensure older tags and images are regularly removed from the Container Registry.

Cleanup policy

• Introduced in GitLab 12.8.
• Renamed from "expiration policy" to "cleanup policy" in GitLab 13.2.

The cleanup policy is a scheduled job you can use to remove tags from the Container Registry. For the project where it's defined, tags matching the regex pattern are removed. The underlying layers and images remain.

To delete the underlying layers and images that aren't associated with any tags, administrators can use garbage collection with the -m switch.

Enable the cleanup policy

Cleanup policies can be run on all projects, with these exceptions:

• For GitLab.com, the project must have been created after 2020-02-22. Support for projects created earlier is tracked in this issue.

• For self-managed GitLab instances, the project must have been created in GitLab 12.8 or later. However, an administrator can enable the cleanup policy for all projects (even those created before 12.8) in GitLab application settings by setting container_expiration_policies_enable_historic_entries to true. Alternatively, you can execute the following command in the Rails console:

  ApplicationSetting.last.update(container_expiration_policies_enable_historic_entries: true)

  There are performance risks with enabling it for all projects, especially if you are using an external registry.

• For self-managed GitLab instances, you can enable or disable the cleanup policy for a specific project.

  To enable it:

  Feature.enable(:container_expiration_policies_historic_entry, Project.find(<project id>))

  To disable it:

  Feature.disable(:container_expiration_policies_historic_entry, Project.find(<project id>))

WARNING: For performance reasons, enabled cleanup policies are automatically disabled for projects on GitLab.com that don't have a container image.

How the cleanup policy works

The cleanup policy collects all tags in the Container Registry and excludes tags until only the tags to be deleted remain.

The cleanup policy searches for images based on the tag name. Support for the full path has not yet been implemented, but would allow you to clean up dynamically-named tags.

The cleanup policy:

1. Collects all tags for a given repository in a list.
2. Excludes the tag named latest from the list.
3. Evaluates the name_regex (tags to expire), excluding non-matching names from the list.
4. Excludes from the list any tags matching the name_regex_keep value (tags to preserve).
5. Excludes any tags that do not have a manifest (not part of the options in the UI).
6. Orders the remaining tags by created_date.
7. Excludes from the list the N tags based on the keep_n value (Number of tags to retain).
8. Excludes from the list the tags more recent than the older_than value (Expiration interval).
9. Finally, the remaining tags in the list are deleted from the Container Registry.

WARNING: On GitLab.com, the execution time for the cleanup policy is limited, and some of the tags may remain in the Container Registry after the policy runs. The next time the policy runs, the remaining tags are included, so it may take multiple runs for all tags to be deleted.

WARNING: GitLab self-managed installs support for third-party container registries that comply with the Docker Registry HTTP API V2 specification. However, this specification does not include a tag delete operation. Therefore, when interacting with third-party container registries, GitLab uses a workaround to delete tags. See the related issue for more information. Due to possible implementation variations, this workaround is not guaranteed to work with all third-party registries in the same predictable way. If you use the GitLab Container Registry, this workaround is not required because we implemented a special tag delete operation. In this case, you can expect cleanup policies to be consistent and predictable.

Create a cleanup policy

You can create a cleanup policy in the API or the UI.

To create a cleanup policy in the UI:

1. For your project, go to Settings > Packages & Registries.

2. Expand the Clean up image tags section.

3. Complete the fields.

   Field	Description
   Toggle	Turn the policy on or off.
   Run cleanup	How often the policy should run.
   Keep the most recent	How many tags to always keep for each image.
   Keep tags matching	The regex pattern that determines which tags to preserve. The latest tag is always preserved. For all tags, use .*. See other regex pattern examples.
   Remove tags older than	Remove only tags older than X days.
   Remove tags matching	The regex pattern that determines which tags to remove. This value cannot be blank. For all tags, use .*. See other regex pattern examples.

4. Click Save.

Depending on the interval you chose, the policy is scheduled to run.

NOTE: If you edit the policy and click Save again, the interval is reset.

Regex pattern examples

Cleanup policies use regex patterns to determine which tags should be preserved or removed, both in the UI and the API.

Regex patterns are automatically surrounded with \A and \Z anchors. Do not include any \A, \Z, ^ or $ token in the regex patterns as they are not necessary.

Here are examples of regex patterns you may want to use:

• Match all tags:

  .*

  This is the default value for the expiration regex.

• Match tags that start with v:

  v.+

• Match only the tag named main:

  main

• Match tags that are either named or start with release:

  release.*

• Match tags that either start with v, are named main, or begin with release:

  (?:v.+|main|release.*)

Set cleanup limits to conserve resources

• Introduced in GitLab 13.9.
• It's deployed behind a feature flag, disabled by default.
• It's enabled on GitLab.com.
• It's not recommended for production use.
• To use it in GitLab self-managed instances, ask a GitLab administrator to enable it.

Cleanup policies are executed as a background process. This process is complex, and depending on the number of tags to delete, the process can take time to finish.

To prevent server resource starvation, the following application settings are available:

• container_registry_expiration_policies_worker_capacity. The maximum number of cleanup workers running concurrently. This must be greater than 1. We recommend starting with a low number and increasing it after monitoring the resources used by the background workers.
• container_registry_delete_tags_service_timeout. The maximum time, in seconds, that the cleanup process can take to delete a batch of tags.
• container_registry_cleanup_tags_service_max_list_size. The maximum number of tags that can be deleted in a single execution. Additional tags must be deleted in another execution. We recommend starting with a low number, like 100, and increasing it after monitoring that container images are properly deleted.

For self-managed instances, those settings can be updated in the Rails console:

ApplicationSetting.last.update(container_registry_expiration_policies_worker_capacity: 3)

Alternatively, once the limits are enabled, they are available in the admin area Settings > CI/CD > Container Registry.

Enable or disable cleanup policy limits

The cleanup policies limits are under development and not ready for production use. They are deployed behind a feature flag that is disabled by default. GitLab administrators with access to the GitLab Rails console can enable it.

To enable it:

Feature.enable(:container_registry_expiration_policies_throttling)

To disable it:

Feature.disable(:container_registry_expiration_policies_throttling)

Use the cleanup policy API

You can set, update, and disable the cleanup policies using the GitLab API.

Examples:

• Select all tags, keep at least 1 tag per image, clean up any tag older than 14 days, run once a month, preserve any images with the name main and the policy is enabled:

  curl --request PUT --header 'Content-Type: application/json;charset=UTF-8' --header "PRIVATE-TOKEN: <your_access_token>" \
       --data-binary '{"container_expiration_policy_attributes":{"cadence":"1month","enabled":true,"keep_n":1,"older_than":"14d","name_regex":"","name_regex_delete":".*","name_regex_keep":".*-main"}}' \
       "https://gitlab.example.com/api/v4/projects/2"

Valid values for cadence when using the API are:

• 1d (every day)
• 7d (every week)
• 14d (every two weeks)
• 1month (every month)
• 3month (every quarter)

See the API documentation for further details: Edit project.

Use with external container registries

When using an external container registry, running a cleanup policy on a project may have some performance risks. If a project runs a policy to remove thousands of tags the GitLab background jobs may get backed up or fail completely. It is recommended you only enable container cleanup policies for projects that were created before GitLab 12.8 if you are confident the number of tags being cleaned up is minimal.

Troubleshooting cleanup policies

If you see the following message:

"Something went wrong while updating the cleanup policy."

Check the regex patterns to ensure they are valid.

GitLab uses RE2 syntax for regular expressions in the cleanup policy. You can test them with the regex101 regex tester. View some common regex pattern examples.

Use the Container Registry to store Helm Charts

With the launch of Helm v3, you can use the Container Registry to store Helm Charts. However, due to the way metadata is passed and stored by Docker, it is not possible for GitLab to parse this data and meet performance standards. This epic updates the architecture of the Container Registry to support Helm Charts.

Read more about the above challenges.

Limitations

• Moving or renaming existing Container Registry repositories is not supported once you have pushed images, because the images are stored in a path that matches the repository path. To move or rename a repository with a Container Registry, you must delete all existing images.
• Prior to GitLab 12.10, any tags that use the same image ID as the latest tag are not deleted by the cleanup policy.

Disable the Container Registry for a project

The Container Registry is enabled by default.

You can, however, remove the Container Registry for a project:

1. Go to your project's Settings > General page.
2. Expand the Visibility, project features, permissions section and disable Container Registry.
3. Click Save changes.

The Packages & Registries > Container Registry entry is removed from the project's sidebar.

Change visibility of the Container Registry

Introduced in GitLab 14.2.

By default, the Container Registry is visible to everyone with access to the project. You can, however, change the visibility of the Container Registry for a project.

See the Container Registry visibility permissions for more details about the permissions that this setting grants to users.

1. Go to your project's Settings > General page.

2. Expand the section Visibility, project features, permissions.

3. Under Container Registry, select an option from the dropdown:

   • Everyone With Access (Default): The Container Registry is visible to everyone with access to the project. If the project is public, the Container Registry is also public. If the project is internal or private, the Container Registry is also internal or private.

   • Only Project Members: The Container Registry is visible only to project members with Reporter role or higher. This is similar to the behavior of a private project with Container Registry visibility set to Everyone With Access.

4. Select Save changes.

Container Registry visibility permissions

The ability to view the Container Registry and pull images is controlled by the Container Registry's visibility permissions. You can change this through the visibility setting on the UI or the API. Other permissions such as updating the Container Registry, pushing or deleting images, and so on are not affected by this setting. However, disabling the Container Registry disables all Container Registry operations.

		Anonymous (Everyone on internet)	Guest	Reporter, Developer, Maintainer, Owner
Public project with Container Registry visibility set to Everyone With Access (UI) or enabled (API)	View Container Registry and pull images	Yes	Yes	Yes
Public project with Container Registry visibility set to Only Project Members (UI) or private (API)	View Container Registry and pull images	No	No	Yes
Internal project with Container Registry visibility set to Everyone With Access (UI) or enabled (API)	View Container Registry and pull images	No	Yes	Yes
Internal project with Container Registry visibility set to Only Project Members (UI) or private (API)	View Container Registry and pull images	No	No	Yes
Private project with Container Registry visibility set to Everyone With Access (UI) or enabled (API)	View Container Registry and pull images	No	No	Yes
Private project with Container Registry visibility set to Only Project Members (UI) or private (API)	View Container Registry and pull images	No	No	Yes
Any project with Container Registry disabled	All operations on Container Registry	No	No	No

Manifest lists and garbage collection

Manifest lists are commonly used for creating multi-architecture images. If you rely on manifest lists, you should tag all the individual manifests referenced by a list in their respective repositories, and not just the manifest list itself. This ensures that those manifests aren't garbage collected, as long as they have at least one tag pointing to them.

Troubleshooting the GitLab Container Registry

Docker connection error

A Docker connection error can occur when there are special characters in either the group, project or branch name. Special characters can include:

• Leading underscore
• Trailing hyphen/dash

To get around this, you can change the group path, change the project path or change the branch name.

You may also get a 404 Not Found or Unknown Manifest message if you are using a Docker Engine version earlier than 17.12. Later versions of Docker Engine use the v2 API.

The images in your GitLab Container Registry must also use the Docker v2 API. For information on how to update your images, see the Docker help.

Blob unknown to registry error when pushing a manifest list

When pushing a Docker manifest list to the GitLab Container Registry, you may receive the error manifest blob unknown: blob unknown to registry. This issue occurs when the individual child manifests referenced in the manifest list were not pushed to the same repository.

For example, you may have two individual images, one for amd64 and another for arm64v8, and you want to build a multi-arch image with them. The amd64 and arm64v8 images must be pushed to the same repository where you want to push the multi-arch image.

As a workaround, you should include the architecture in the tag name of individual images. For example, use mygroup/myapp:1.0.0-amd64 instead of using sub repositories, like mygroup/myapp/amd64:1.0.0. You can then tag the manifest list with mygroup/myapp:1.0.0.

The cleanup policy doesn't delete any tags

There can be different reasons behind this:

• In GitLab 13.6 and earlier, when you run the cleanup policy you may expect it to delete tags and it does not. This occurs when the cleanup policy is saved without editing the value in the Remove tags matching field. This field has a grayed out .* value as a placeholder. Unless .* (or another regex pattern) is entered explicitly into the field, a nil value is submitted. This value prevents the saved cleanup policy from matching any tags. As a workaround, edit the cleanup policy. In the Remove tags matching field, enter .* and save. This value indicates that all tags should be removed.

• If you are on GitLab self-managed instances and you have 1000+ tags in a container repository, you might run into a Container Registry token expiration issue, with error authorizing context: invalid token in the logs.

  To fix this, there are two workarounds:

  • If you are on GitLab 13.9 or later, you can set limits for the cleanup policy. This limits the cleanup execution in time, and avoids the expired token error.

  • Extend the expiration delay of the Container Registry authentication tokens. This defaults to 5 minutes. You can set a custom value by running ApplicationSetting.last.update(container_registry_token_expire_delay: <integer>) in the Rails console, where <integer> is the desired number of minutes. For reference, 15 minutes is the value currently in use for GitLab.com. Be aware that by extending this value you increase the time required to revoke permissions.

If the previous fixes didn't work or you are on earlier versions of GitLab, you can generate a list of the tags that you want to delete, and then use that list to delete the tags. To do this, follow these steps:

1. Run the following shell script. The command just before the for loop ensures that list_o_tags.out is always reinitialized when starting the loop. After running this command, all the tags' names will be in the list_o_tags.out file:

   # Get a list of all tags in a certain container repository while considering [pagination](../../../api/index.md#pagination)
   echo -n "" > list_o_tags.out; for i in {1..N}; do curl --header 'PRIVATE-TOKEN: <PAT>' "https://gitlab.example.com/api/v4/projects/<Project_id>/registry/repositories/<container_repo_id>/tags?per_page=100&page=${i}" | jq '.[].name' | sed 's:^.\(.*\).$:\1:' >> list_o_tags.out; done

   If you have Rails console access, you can enter the following commands to retrieve a list of tags limited by date:

   output = File.open( "/tmp/list_o_tags.out","w" )
   Project.find(<Project_id>).container_repositories.find(<container_repo_id>).tags.each do |tag|
     output << tag.name + "\n" if tag.created_at < 1.month.ago
   end;nil
   output.close

   This set of commands creates a /tmp/list_o_tags.out file listing all tags with a created_at date of older than one month.

2. Remove from the list_o_tags.out file any tags that you want to keep. Here are some example sed commands for this. Note that these commands are simply examples. You may change them to best suit your needs:

   # Remove the `latest` tag from the file
   sed -i '/latest/d' list_o_tags.out

   # Remove the first N tags from the file
   sed -i '1,Nd' list_o_tags.out

   # Remove the tags starting with `Av` from the file
   sed -i '/^Av/d' list_o_tags.out

   # Remove the tags ending with `_v3` from the file
   sed -i '/_v3$/d' list_o_tags.out

   If you are running macOS, you must add .bak to the commands. For example:

   sed -i .bak '/latest/d' list_o_tags.out

3. Double-check the list_o_tags.out file to make sure it contains only the tags that you want to delete.

4. Run this shell script to delete the tags in the list_o_tags.out file:

   # loop over list_o_tags.out to delete a single tag at a time
   while read -r LINE || [[ -n $LINE ]]; do echo ${LINE}; curl --request DELETE --header 'PRIVATE-TOKEN: <PAT>' "https://gitlab.example.com/api/v4/projects/<Project_id>/registry/repositories/<container_repo_id>/tags/${LINE}"; sleep 0.1; echo; done < list_o_tags.out > delete.logs

Troubleshoot as a GitLab server admin

Troubleshooting the GitLab Container Registry, most of the times, requires administrator access to the GitLab server.

Read how to troubleshoot the Container Registry.

Unable to change path or transfer a project

If you try to change a project's path or transfer a project to a new namespace, you may receive one of the following errors:

• "Project cannot be transferred, because tags are present in its container registry."
• "Namespace cannot be moved because at least one project has tags in container registry."

This issue occurs when the project has images in the Container Registry. You must delete or move these images before you can change the path or transfer the project.

The following procedure uses these sample project names:

• For the current project: gitlab.example.com/org/build/sample_project/cr:v2.9.1
• For the new project: gitlab.example.com/new_org/build/new_sample_project/cr:v2.9.1

Use your own URLs to complete the following steps:

1. Download the Docker images on your computer:

   docker login gitlab.example.com
   docker pull gitlab.example.com/org/build/sample_project/cr:v2.9.1

2. Rename the images to match the new project name:

   docker tag gitlab.example.com/org/build/sample_project/cr:v2.9.1 gitlab.example.com/new_org/build/new_sample_project/cr:v2.9.1

3. Delete the images in both projects by using the UI or API. There may be a delay while the images are queued and deleted.

4. Change the path or transfer the project by going to Settings > General and expanding Advanced.

5. Restore the images:

   docker push gitlab.example.com/new_org/build/new_sample_project/cr:v2.9.1

Follow this issue for details.
