Runbooks (FREE)

Runbooks are a collection of documented procedures that explain how to carry out a particular process, be it starting, stopping, debugging, or troubleshooting a particular system.

Using Jupyter Notebooks and the Rubix library, users can get started writing their own executable runbooks.

Historically, runbooks took the form of a decision tree or a detailed step-by-step guide depending on the condition or system.

Modern implementations have introduced the concept of an "executable runbooks", where, along with a well-defined process, operators can execute pre-written code blocks or database queries against a given environment.

Executable Runbooks

Introduced in GitLab 11.4.

The JupyterHub app offered via the GitLab Kubernetes integration now ships with Nurtch's Rubix library, providing a simple way to create DevOps runbooks. A sample runbook is provided, showcasing common operations. While Rubix makes it simple to create common Kubernetes and AWS workflows, you can also create them manually without Rubix.

Watch this video for an overview of how this is accomplished in GitLab!

Requirements

To create an executable runbook, you need:

Kubernetes - A Kubernetes cluster is required to deploy the rest of the applications. The simplest way to get started is to add a cluster using one of the GitLab integrations.
Ingress - Ingress can provide load balancing, SSL termination, and name-based virtual hosting. It acts as a web proxy for your applications.
JupyterHub - JupyterHub is a multi-user service for managing notebooks across a team. Jupyter Notebooks provide a web-based interactive programming environment used for data analysis, visualization, and machine learning.

Nurtch

Nurtch is the company behind the Rubix library. Rubix is an open-source Python library that makes it easy to perform common DevOps tasks inside Jupyter Notebooks. Tasks such as plotting Cloudwatch metrics and rolling your ECS/Kubernetes app are simplified down to a couple of lines of code. See the Nurtch Documentation for more information.

Configure an executable runbook with GitLab

Follow this step-by-step guide to configure an executable runbook in GitLab using the components outlined above and the pre-loaded demo runbook.

Create an OAuth Application for JupyterHub.

When installing JupyterHub with Helm, use the following values

#-----------------------------------------------------------------------------
# The gitlab and ingress sections must be customized!
#-----------------------------------------------------------------------------

gitlab:
   clientId: <Your OAuth Application ID>
   clientSecret: <Your OAuth Application Secret>
   callbackUrl: http://<Jupyter Hostname>/hub/oauth_callback,
   # Limit access to members of specific projects or groups:
   # allowedGitlabGroups: [ "my-group-1", "my-group-2" ]
   # allowedProjectIds: [ 12345, 6789 ]

# ingress is required for OAuth to work
ingress:
   enabled: true
   host: <JupyterHostname>
   # tls:
   #    - hosts:
   #       - <JupyterHostanme>
   #         secretName: jupyter-cert
   # annotations:
   #    kubernetes.io/ingress.class: "nginx"
   #    kubernetes.io/tls-acme: "true"

#-----------------------------------------------------------------------------
# NO MODIFICATIONS REQUIRED BEYOND THIS POINT
#-----------------------------------------------------------------------------

hub:
   extraEnv:
      JUPYTER_ENABLE_LAB: 1
   extraConfig: |
      c.KubeSpawner.cmd = ['jupyter-labhub']
      c.GitLabOAuthenticator.scope = ['api read_repository write_repository']

      async def add_auth_env(spawner):
         '''
         We set user's id, login and access token on single user image to
         enable repository integration for JupyterHub.
         See: https://gitlab.com/gitlab-org/gitlab-foss/issues/47138#note_154294790
         '''
         auth_state = await spawner.user.get_auth_state()

         if not auth_state:
            spawner.log.warning("No auth state for %s", spawner.user)
            return

         spawner.environment['GITLAB_ACCESS_TOKEN'] = auth_state['access_token']
         spawner.environment['GITLAB_USER_LOGIN'] = auth_state['gitlab_user']['username']
         spawner.environment['GITLAB_USER_ID'] = str(auth_state['gitlab_user']['id'])
         spawner.environment['GITLAB_USER_EMAIL'] = auth_state['gitlab_user']['email']
         spawner.environment['GITLAB_USER_NAME'] = auth_state['gitlab_user']['name']

      c.KubeSpawner.pre_spawn_hook = add_auth_env

auth:
   type: gitlab
   state:
      enabled: true

singleuser:
   defaultUrl: "/lab"
   image:
      name: registry.gitlab.com/gitlab-org/jupyterhub-user-image
      tag: latest
   lifecycleHooks:
      postStart:
         exec:
         command:
            - "sh"
            - "-c"
            - >
               git clone https://gitlab.com/gitlab-org/nurtch-demo.git DevOps-Runbook-Demo || true;
               echo "https://oauth2:${GITLAB_ACCESS_TOKEN}@${GITLAB_HOST}" > ~/.git-credentials;
               git config --global credential.helper store;
               git config --global user.email "${GITLAB_USER_EMAIL}";
               git config --global user.name "${GITLAB_USER_NAME}";
               jupyter serverextension enable --py jupyterlab_git

proxy:
   service:
      type: ClusterIP

After JupyterHub has been installed successfully, open the Jupyter Hostname in your browser. Click the Sign in with GitLab button to log in to JupyterHub and start the server. Authentication is enabled for any user of the GitLab instance with OAuth2. This button redirects you to a page at GitLab requesting authorization for JupyterHub to use your GitLab account.
Click Authorize, and GitLab redirects you to the JupyterHub application.
Click Start My Server to start the server in a few seconds.
To configure the runbook's access to your GitLab project, you must enter your GitLab Access Token and your Project ID in the Setup section of the demo runbook:

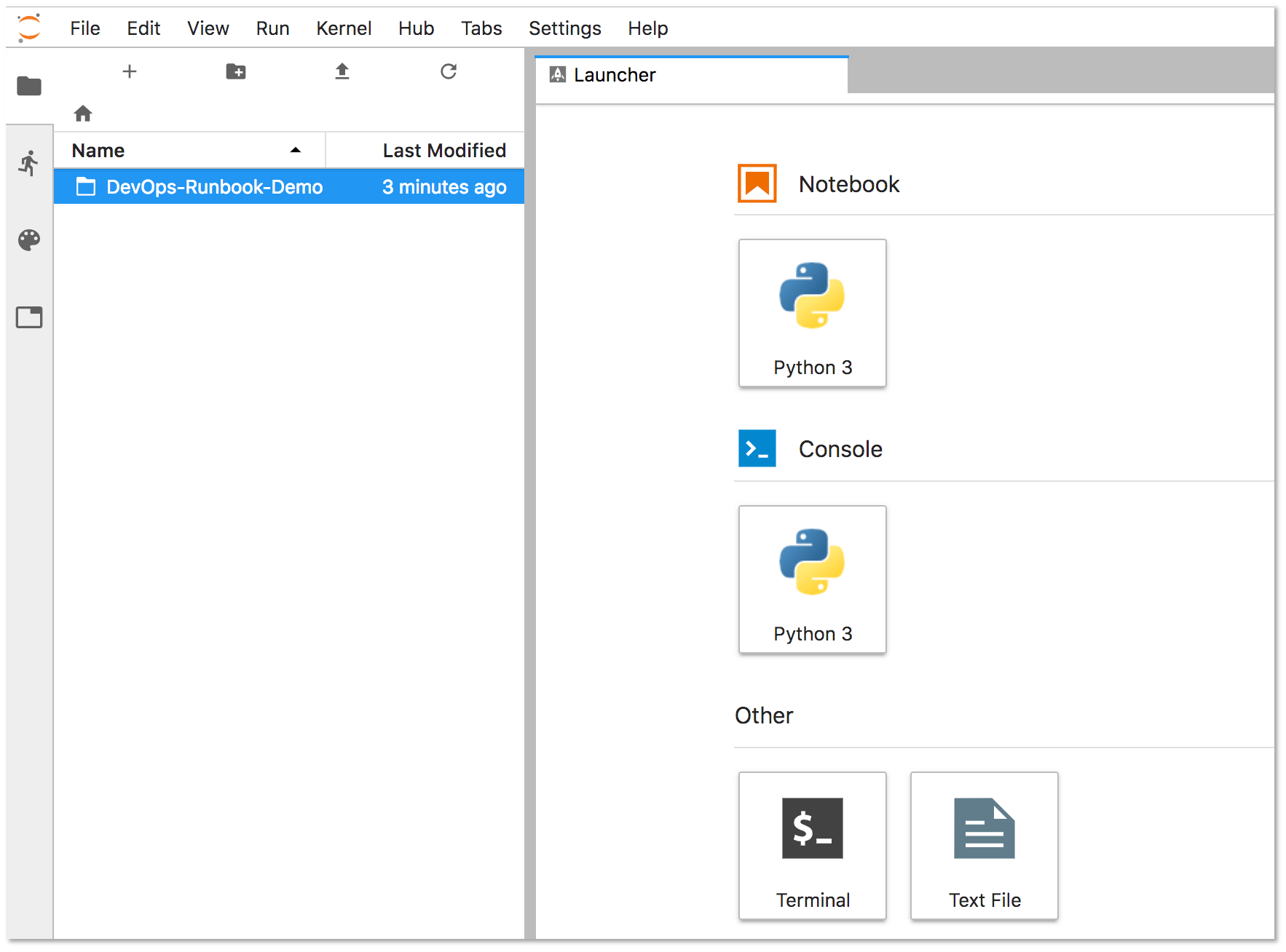

1. Double-click the DevOps-Runbook-Demo folder located on the left panel.

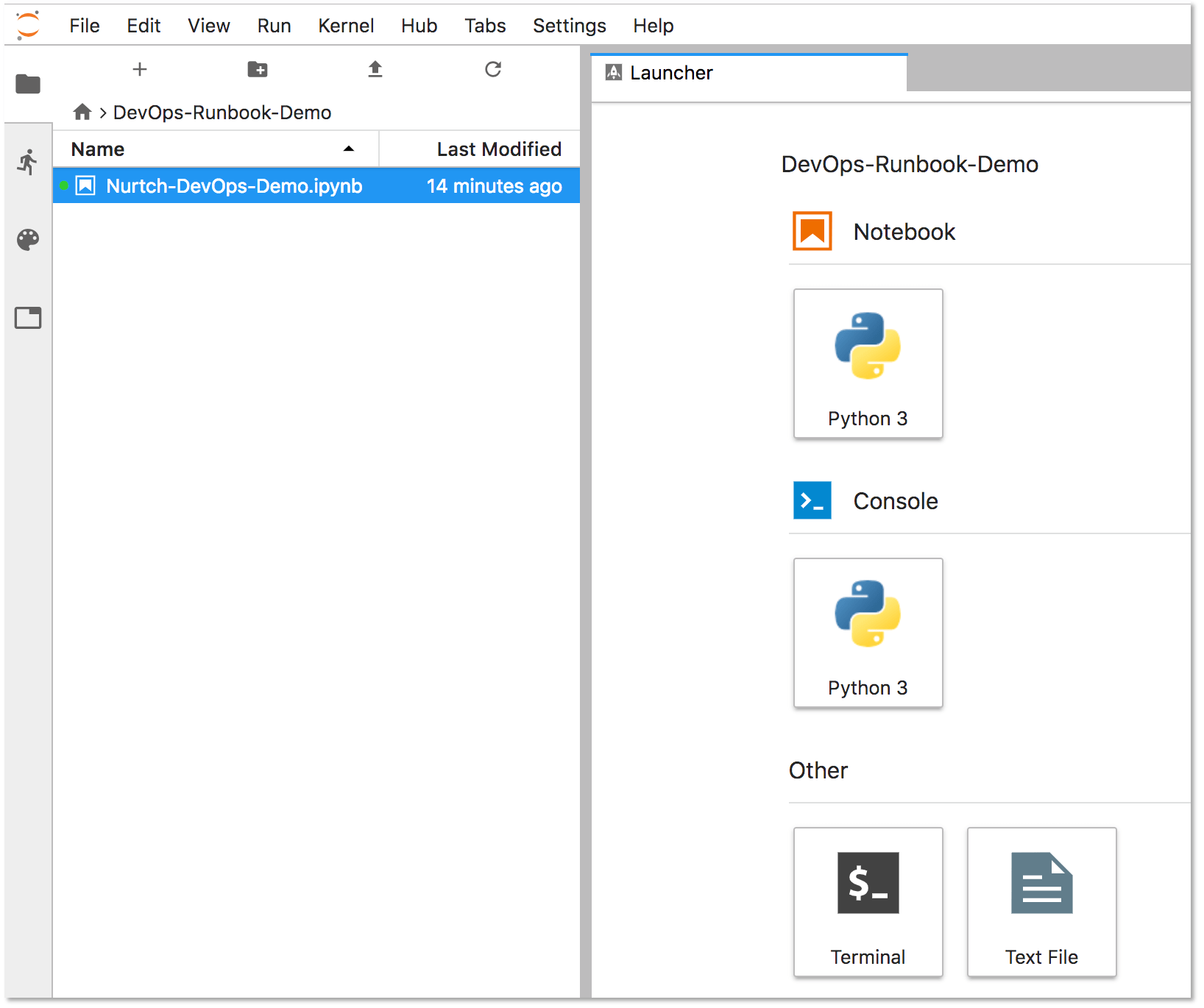

2. Double-click the Nurtch-DevOps-Demo.ipynb runbook.

  Jupyter displays the runbook's contents in the right-hand side of the screen. The Setup section displays your PRIVATE_TOKEN and your PROJECT_ID. Enter these values, maintaining the single quotes as follows:
```
PRIVATE_TOKEN = '<your_access_token>'
PROJECT_ID = '1234567'
```
3. Update the VARIABLE_NAME on the last line of this section to match the name of the variable you're using for your access token. In this example, our variable name is PRIVATE_TOKEN.
```
VARIABLE_VALUE = project.variables.get('PRIVATE_TOKEN').value
```
To configure the operation of a runbook, create and configure variables. For this example, we are using the Run SQL queries in Notebook section in the sample runbook to query a PostgreSQL database. The first four lines of the following code block define the variables that are required for this query to function:
```
%env DB_USER={project.variables.get('DB_USER').value}
%env DB_PASSWORD={project.variables.get('DB_PASSWORD').value}
%env DB_ENDPOINT={project.variables.get('DB_ENDPOINT').value}
%env DB_NAME={project.variables.get('DB_NAME').value}
```

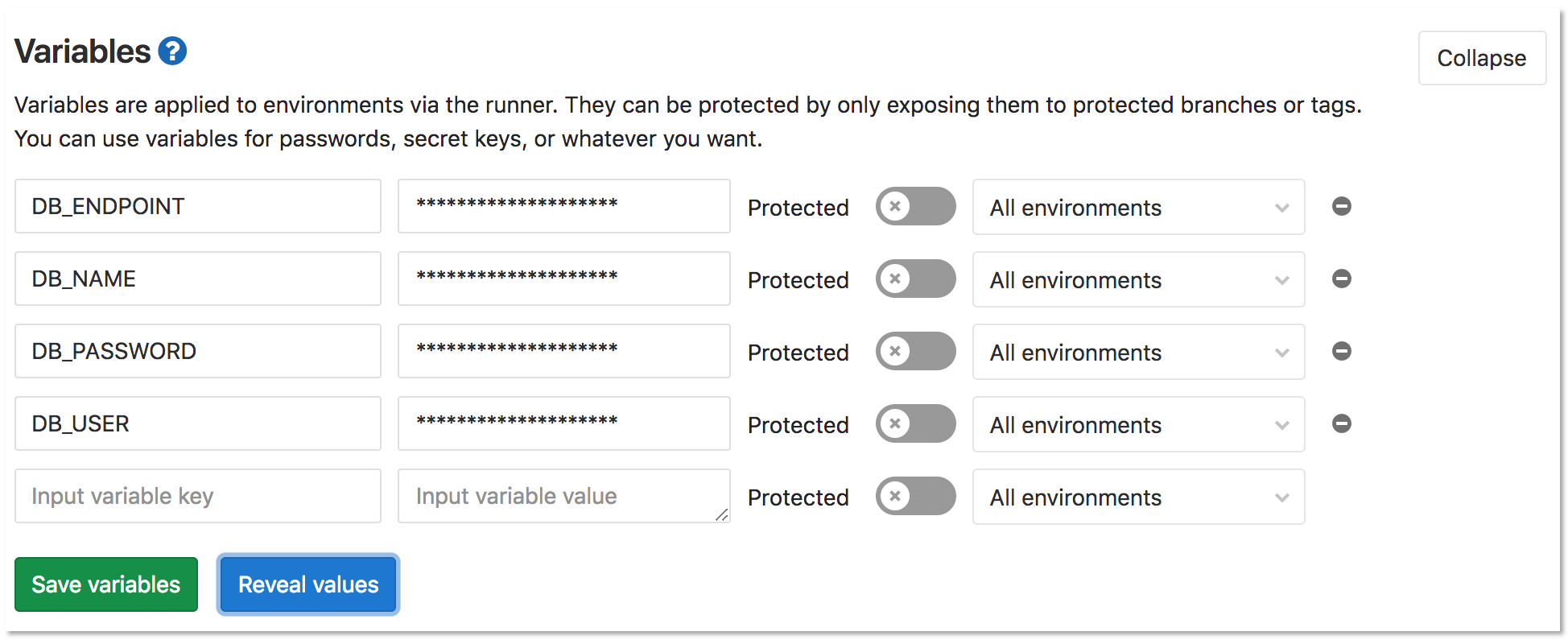

1. Navigate to Settings > CI/CD > Variables to create the variables in your project.
2. Click Save variables.

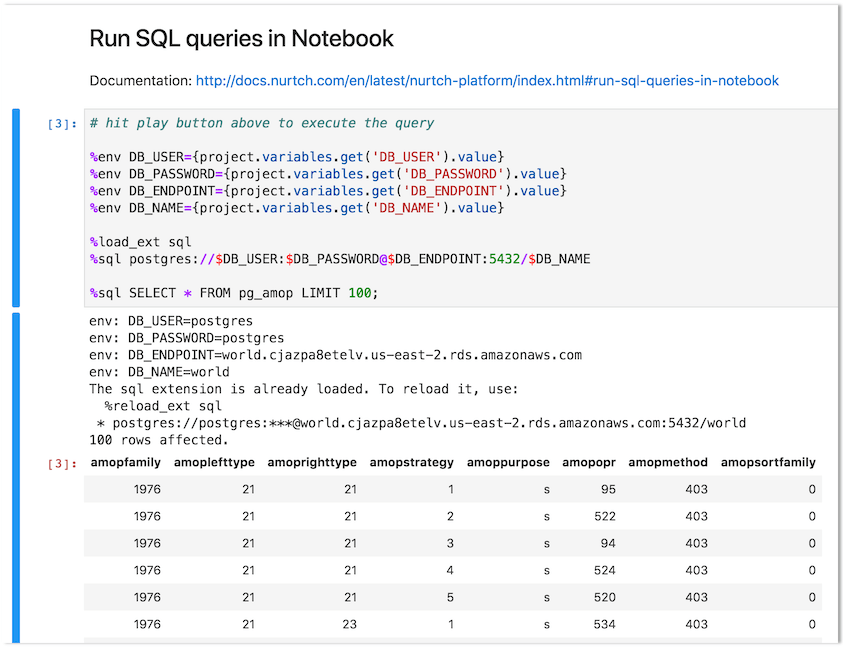

3. In Jupyter, click the Run SQL queries in Notebook heading, and then click Run. The results are displayed inline as follows:

You can try other operations, such as running shell scripts or interacting with a Kubernetes cluster. Visit the Nurtch Documentation for more information.
