Exploring GitLab Pages (FREE)

This document is a user guide to explore the options and settings GitLab Pages offers.

To familiarize yourself with GitLab Pages first:

Read an introduction to GitLab Pages.
Learn how to get started with Pages.
Learn how to enable GitLab Pages across your GitLab instance on the administrator documentation.

GitLab Pages requirements

In brief, this is what you need to upload your website in GitLab Pages:

Domain of the instance: domain name that is used for GitLab Pages (ask your administrator).
GitLab CI/CD: a .gitlab-ci.yml file with a specific job named pages in the root directory of your repository.
A directory called public in your site's repository containing the content to be published.
GitLab Runner enabled for the project.

GitLab Pages on GitLab.com

If you are using GitLab Pages on GitLab.com to host your website, then:

The domain name for GitLab Pages on GitLab.com is gitlab.io.
Custom domains and TLS support are enabled.
Shared runners are enabled by default, provided for free and can be used to build your website. If you want you can still bring your own runner.

Example projects

Visit the GitLab Pages group for a complete list of example projects. Contributions are very welcome.

Custom error codes Pages

You can provide your own 403 and 404 error pages by creating the 403.html and 404.html files respectively in the root directory of the public/ directory that are included in the artifacts. Usually this is the root directory of your project, but that may differ depending on your static generator configuration.

If the case of 404.html, there are different scenarios. For example:

If you use project Pages (served under /projectname/) and try to access /projectname/non/existing_file, GitLab Pages tries to serve first /projectname/404.html, and then /404.html.
If you use user/group Pages (served under /) and try to access /non/existing_file GitLab Pages tries to serve /404.html.
If you use a custom domain and try to access /non/existing_file, GitLab Pages tries to serve only /404.html.

Redirects in GitLab Pages

You can configure redirects for your site using a _redirects file. To learn more, read the redirects documentation.

GitLab Pages Access Control (FREE)

To restrict access to your website, enable GitLab Pages Access Control.

Unpublishing your Pages

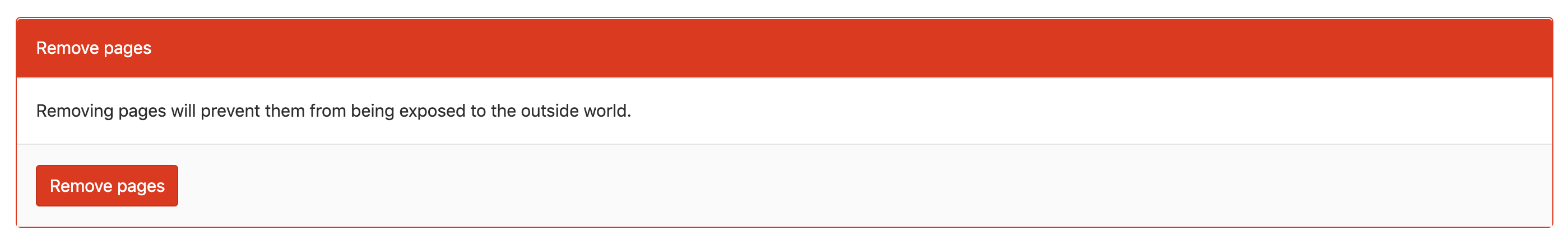

If you ever feel the need to purge your Pages content, you can do so by going to your project's settings through the gear icon in the top right, and then navigating to Pages. Click the Remove pages button to delete your Pages website.

Limitations

When using Pages under the general domain of a GitLab instance (*.example.io), you cannot use HTTPS with sub-subdomains. That means that if your username or group name contains a dot, for example foo.bar, the domain https://foo.bar.example.io does not work. This is a limitation of the HTTP Over TLS protocol. HTTP pages continue to work provided you don't redirect HTTP to HTTPS.

GitLab Pages does not support group websites for subgroups. You can only create the highest-level group website.

Specific configuration options for Pages

Learn how to set up GitLab CI/CD for specific use cases.

`.gitlab-ci.yml` for plain HTML websites

Supposed your repository contained the following files:

├── index.html
├── css
│   └── main.css
└── js
    └── main.js

Then the .gitlab-ci.yml example below simply moves all files from the root directory of the project to the public/ directory. The .public workaround is so cp doesn't also copy public/ to itself in an infinite loop:

pages:
  script:
    - mkdir .public
    - cp -r * .public
    - mv .public public
  artifacts:
    paths:
      - public
  only:
    - master

`.gitlab-ci.yml` for a static site generator

See this document for a step-by-step guide.

`.gitlab-ci.yml` for a repository where there's also actual code

Remember that GitLab Pages are by default branch/tag agnostic and their deployment relies solely on what you specify in .gitlab-ci.yml. You can limit the pages job with the only parameter, whenever a new commit is pushed to a branch used specifically for your pages.

That way, you can have your project's code in the master branch and use an orphan branch (let's name it pages) to host your static generator site.

You can create a new empty branch like this:

git checkout --orphan pages

The first commit made on this new branch has no parents and is the root of a new history totally disconnected from all the other branches and commits. Push the source files of your static generator in the pages branch.

Below is a copy of .gitlab-ci.yml where the most significant line is the last one, specifying to execute everything in the pages branch:

image: ruby:2.6

pages:
  script:
    - gem install jekyll
    - jekyll build -d public/
  artifacts:
    paths:
      - public
  only:
    - pages

See an example that has different files in the master branch and the source files for Jekyll are in a pages branch which also includes .gitlab-ci.yml.

Serving compressed assets

Most modern browsers support downloading files in a compressed format. This speeds up downloads by reducing the size of files.

Before serving an uncompressed file, Pages checks if the same file exists with a .br or .gz extension. If it does, and the browser supports receiving compressed files, it serves that version instead of the uncompressed one.

To take advantage of this feature, the artifact you upload to the Pages should have this structure:

public/
├─┬ index.html
│ | index.html.br
│ └ index.html.gz
│
├── css/
│   └─┬ main.css
│     | main.css.br
│     └ main.css.gz
│
└── js/
    └─┬ main.js
      | main.js.br
      └ main.js.gz

This can be achieved by including a script: command like this in your .gitlab-ci.yml pages job:

pages:
  # Other directives
  script:
    # Build the public/ directory first
    - find public -type f -regex '.*\.\(htm\|html\|txt\|text\|js\|css\)$' -exec gzip -f -k {} \;
    - find public -type f -regex '.*\.\(htm\|html\|txt\|text\|js\|css\)$' -exec brotli -f -k {} \;

By pre-compressing the files and including both versions in the artifact, Pages can serve requests for both compressed and uncompressed content without needing to compress files on-demand.

Resolving ambiguous URLs

Introduced in GitLab 11.8

GitLab Pages makes assumptions about which files to serve when receiving a request for a URL that does not include an extension.

Consider a Pages site deployed with the following files:

public/
├─┬ index.html
│ ├ data.html
│ └ info.html
│
├── data/
│   └── index.html
├── info/
│   └── details.html
└── other/
    └── index.html

Pages supports reaching each of these files through several different URLs. In particular, it always looks for an index.html file if the URL only specifies the directory. If the URL references a file that doesn't exist, but adding .html to the URL leads to a file that does exist, it's served instead. Here are some examples of what happens given the above Pages site:

URL path	HTTP response	File served
`/`	`200 OK`	`public/index.html`
`/index.html`	`200 OK`	`public/index.html`
`/index`	`200 OK`	`public/index.html`
`/data`	`200 OK`	`public/data/index.html`
`/data/`	`200 OK`	`public/data/index.html`
`/data.html`	`200 OK`	`public/data.html`
`/info`	`200 OK`	`public/info.html`
`/info/`	`200 OK`	`public/info.html`
`/info.html`	`200 OK`	`public/info.html`
`/info/details`	`200 OK`	`public/info/details.html`
`/info/details.html`	`200 OK`	`public/info/details.html`
`/other`	`302 Found`	`public/other/index.html`
`/other/`	`200 OK`	`public/other/index.html`
`/other/index`	`200 OK`	`public/other/index.html`
`/other/index.html`	`200 OK`	`public/other/index.html`

Note that when public/data/index.html exists, it takes priority over the public/data.html file for both the /data and /data/ URL paths.

Frequently Asked Questions

Can I download my generated pages?

Sure. All you need to do is download the artifacts archive from the job page.

Can I use GitLab Pages if my project is private?

Yes. GitLab Pages doesn't care whether you set your project's visibility level to private, internal or public.

Can I create a personal or a group website

Yes. See the documentation about GitLab Pages domain names, URLs, and base URLs.

Do I need to create a user/group website before creating a project website?

No, you don't. You can create your project first and access it under http(s)://namespace.example.io/projectname.

Known issues

For a list of known issues, visit the GitLab public issue tracker.

Troubleshooting

404 error when accessing a GitLab Pages site URL

This problem most likely results from a missing index.html file in the public directory. If after deploying a Pages site a 404 is encountered, confirm that the public directory contains an index.html file. If the file contains a different name such as test.html, the Pages site can still be accessed, but the full path would be needed. For example: https//group-name.pages.example.com/project-name/test.html.

The contents of the public directory can be confirmed by browsing the artifacts from the latest pipeline.

Files listed under the public directory can be accessed through the Pages URL for the project.

A 404 can also be related to incorrect permissions. If Pages Access Control is enabled, and a user navigates to the Pages URL and receives a 404 response, it is possible that the user does not have permission to view the site. To fix this, verify that the user is a member of the project.

For Geo instances, 404 errors on Pages occur after promoting a secondary to a primary. Find more details in the Pages administration documentation

Cannot play media content on Safari

Safari requires the web server to support the Range request header in order to play your media content. For GitLab Pages to serve HTTP Range requests, you should use the following two variables in your .gitlab-ci.yaml file:

pages:
  stage: deploy
  variables:
    FF_USE_FASTZIP: "true"
    ARTIFACT_COMPRESSION_LEVEL: "fastest"
  script:
    - echo "Deploying pages"
  artifacts:
    paths:
      - public

The FF_USE_FASTZIP variable enables the feature flag which is needed for ARTIFACT_COMPRESSION_LEVEL.
