Alerts (FREE)

Alerts are a critical entity in your incident management workflow. They represent a notable event that might indicate a service outage or disruption. GitLab provides a list view for triage and detail view for deeper investigation of what happened.

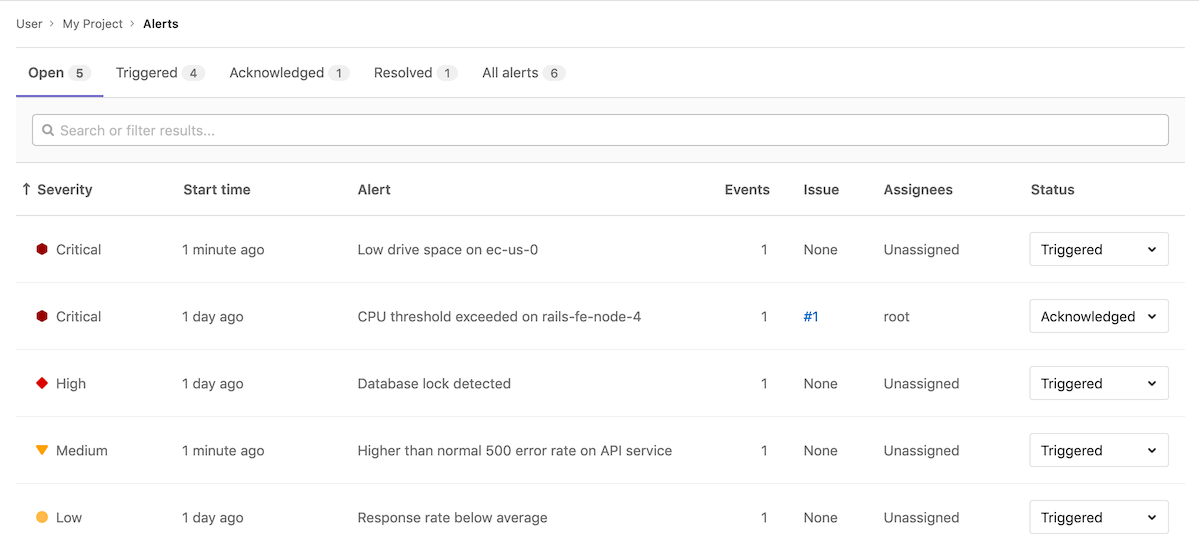

Alert List

Users with at least Developer permissions can access the Alert list at Monitor > Alerts in your project's sidebar. The Alert list displays alerts sorted by start time, but you can change the sort order by clicking the headers in the Alert list. (Introduced in GitLab 13.1.)

The alert list displays the following information:

• Search: The alert list supports a simple free text search on the title, description, monitoring tool, and service fields. (Introduced in GitLab 13.1.)
• Severity: The current importance of a alert and how much attention it should receive. For a listing of all statuses, read Alert Management severity.
• Start time: How long ago the alert fired. This field uses the standard GitLab pattern of X time ago, but is supported by a granular date/time tooltip depending on the user's locale.
• Alert description: The description of the alert, which attempts to capture the most meaningful data.
• Event count: The number of times that an alert has fired.
• Issue: A link to the incident issue that has been created for the alert.
• Status: The current status of the alert:
  • Triggered: Investigation has not started.
  • Acknowledged: Someone is actively investigating the problem.
  • Resolved: No further work is required.
  • Ignored: No action will be taken on the alert.

NOTE: Check out a live example available from the tanuki-inc project page in GitLab to examine alerts in action.

Alert severity

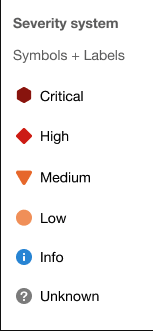

Each level of alert contains a uniquely shaped and color-coded icon to help you identify the severity of a particular alert. These severity icons help you immediately identify which alerts you should prioritize investigating:

Alerts contain one of the following icons:

Severity	Icon	Color (hexadecimal)
Critical	{severity-critical}	#8b2615
High	{severity-high}	#c0341d
Medium	{severity-medium}	#fca429
Low	{severity-low}	#fdbc60
Info	{severity-info}	#418cd8
Unknown	{severity-unknown}	#bababa

Alert details page

Navigate to the Alert details view by visiting the Alert list and selecting an alert from the list. You need least Developer permissions to access alerts.

NOTE: To review live examples of GitLab alerts, visit the alert list for this demo project. Select any alert in the list to examine its alert details page.

Alerts provide Overview and Alert details tabs to give you the right amount of information you need.

Alert details tab

The Alert details tab has two sections. The top section provides a short list of critical details such as the severity, start time, number of events, and originating monitoring tool. The second section displays the full alert payload.

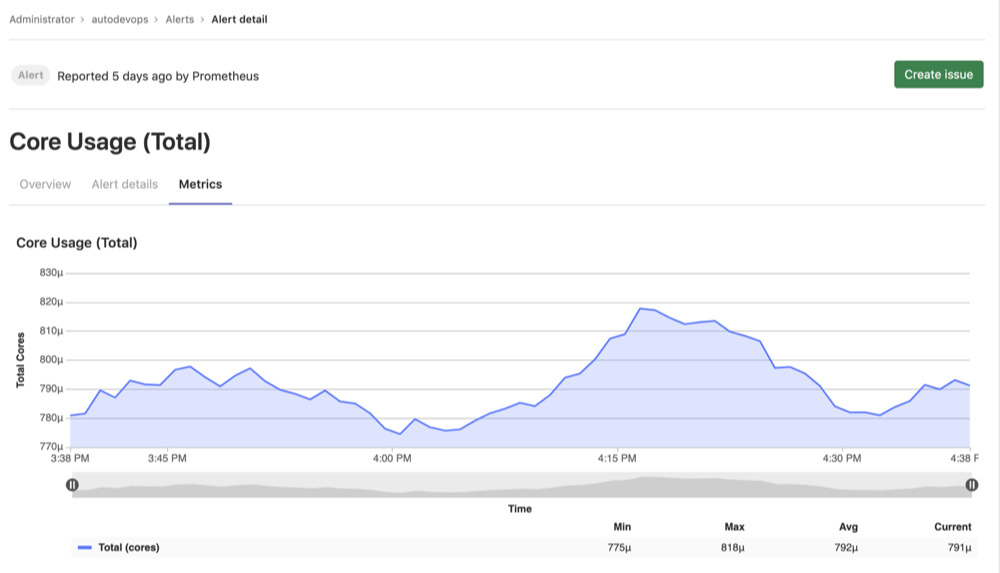

Metrics tab

Introduced in GitLab 13.2.

The Metrics tab displays a metrics chart for alerts coming from Prometheus. If the alert originated from any other tool, the Metrics tab is empty. For externally-managed Prometheus instances, you must configure your alerting rules to display a chart in the alert. For information about how to configure your alerting rules, see Embedding metrics based on alerts in incident issues. See External Prometheus instances for information about setting up alerts for your self-managed Prometheus instance.

Prerequisite:

• You must have at least the Developer role.

To view the metrics for an alert:

1. On the top bar, select Menu > Projects and find your project.
2. On the left sidebar, select Monitor > Alerts.
3. Select the alert you want to view.
4. Below the title of the alert, select the Metrics tab.

View an alert's logs

• Introduced in GitLab Ultimate 12.8.
• Improved in GitLab 13.3.
• Moved to GitLab Free 12.9.

Viewing logs from a metrics panel can be useful if you're triaging an application incident and need to explore logs from across your application. These logs help you understand what's affecting your application's performance and how to resolve any problems.

Prerequisite:

• You must have at least the Developer role.

To view the logs for an alert:

1. On the top bar, select Menu > Projects and find your project.
2. On the left sidebar, select Monitor > Alerts.
3. Select the alert you want to view.
4. Below the title of the alert, select the Metrics tab.
5. Select the menu of the metric chart to view options.
6. Select View logs.

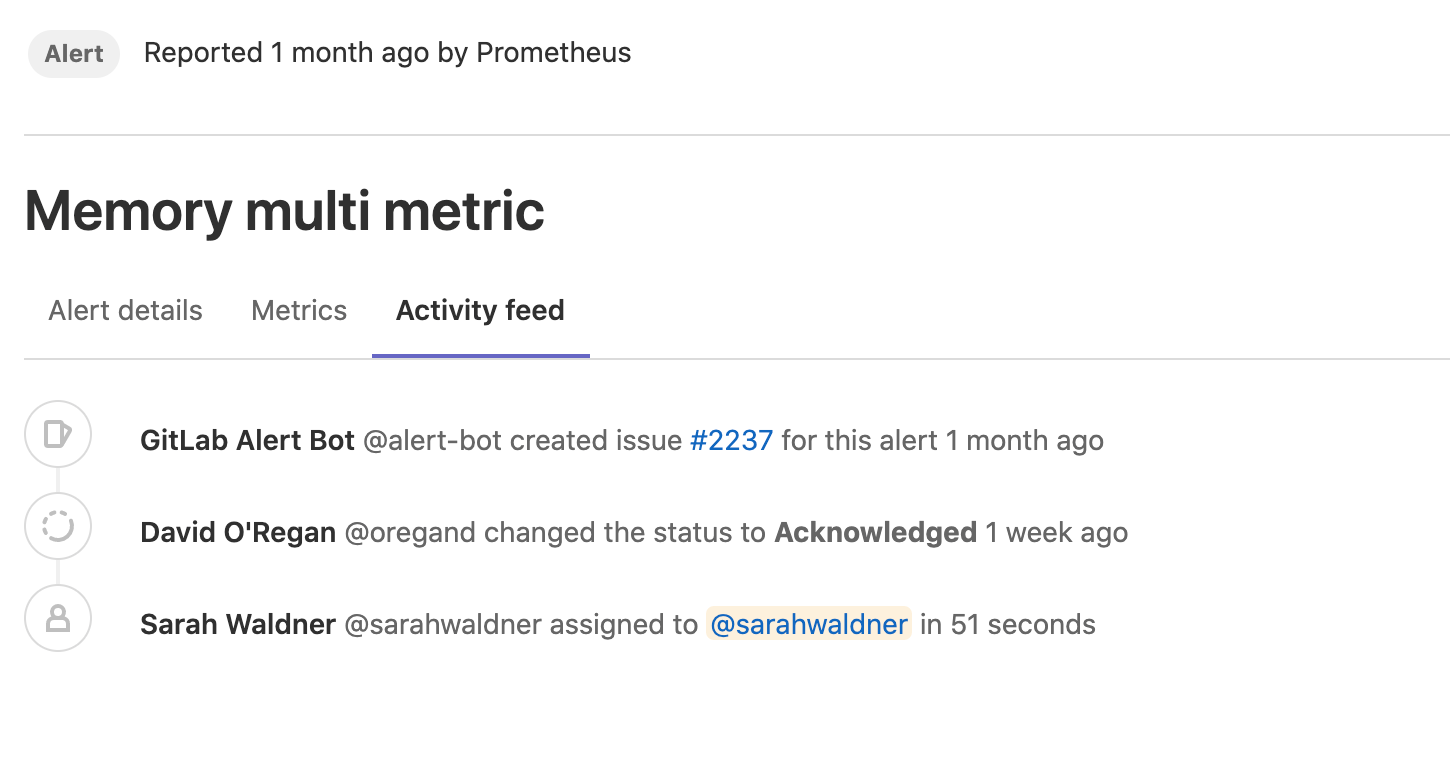

Activity feed tab

Introduced in GitLab 13.1.

The Activity feed tab is a log of activity on the alert. When you take action on an alert, this is logged as a system note. This gives you a linear timeline of the alert's investigation and assignment history.

The following actions result in a system note:

• Updating the status of an alert
• Creating an incident based on an alert
• Assignment of an alert to a user

Alert actions

There are different actions available in GitLab to help triage and respond to alerts.

Update an alert's status

The Alert detail view enables you to update the Alert Status. See Create and manage alerts in GitLab for more details.

Create an incident from an alert

Introduced in GitLab 13.1.

The Alert detail view enables you to create an issue with a description populated from an alert. To create the issue, select the Create Issue button. You can then view the issue from the alert by selecting the View Issue button.

Closing a GitLab issue associated with an alert changes the alert's status to Resolved. See Create and manage alerts in GitLab for more details about alert statuses.

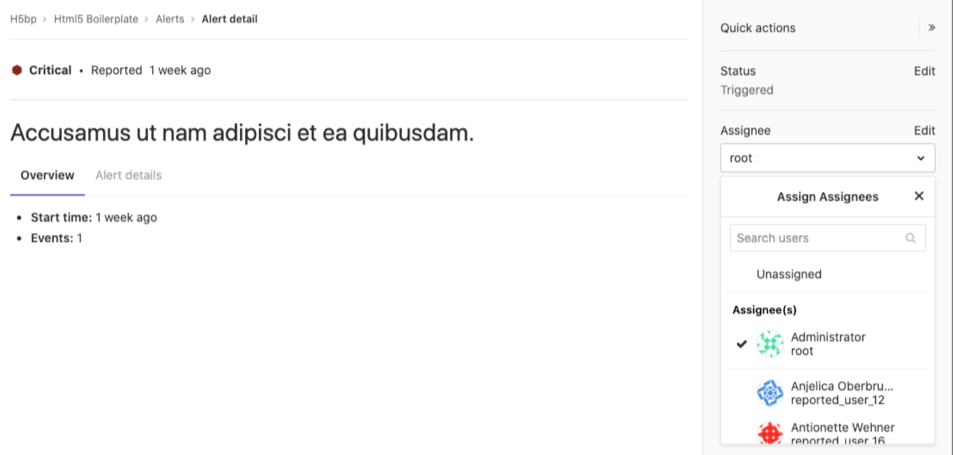

Assign an alert

Introduced in GitLab 13.1.

In large teams, where there is shared ownership of an alert, it can be difficult to track who is investigating and working on it. Assigning alerts eases collaboration and delegation by indicating which user is owning the alert. GitLab supports only a single assignee per alert.

To assign an alert:

1. Display the list of current alerts:

   1. On the top bar, select Menu > Projects and find your project.
   2. On the left sidebar, select Monitor > Alerts.

2. Select your desired alert to display its details.



3. If the right sidebar is not expanded, select Expand sidebar ({angle-double-right}) to expand it.

4. On the right sidebar, locate the Assignee, and then select Edit. From the list, select each user you want to assign to the alert. GitLab creates a to-do item for each user.

After completing their portion of investigating or fixing the alert, users can unassign themselves from the alert. To remove an assignee, select Edit next to the Assignee dropdown menu and deselect the user from the list of assignees, or select Unassigned.

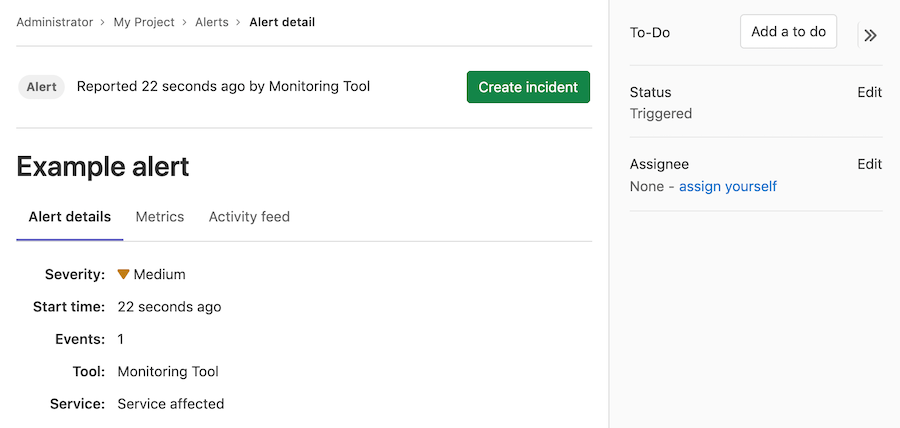

Create a to-do item from an alert

Introduced in GitLab 13.1.

You can manually create To-Do list items for yourself from the Alert details screen, and view them later on your To-Do List. To add a to-do item:

1. Display the list of current alerts:

   1. On the top bar, select Menu > Projects and find your project.
   2. On the left sidebar, select Monitor > Alerts.

2. Select your desired alert to display its Alert Management Details View.

3. On the right sidebar, select Add a to do:



To view your To-Do List, on the top bar, select To-Do List ({todo-done}).

View the environment that generated the alert

• Introduced in GitLab 13.5 behind a feature flag, disabled by default.
• Enabled by default in GitLab 13.6.

WARNING: This feature might not be available to you. Check the version history note above for details.

The environment information and the link are displayed in the Alert Details tab.
