Dependency Scanning (ULTIMATE)

The Dependency Scanning feature can automatically find security vulnerabilities in your dependencies while you're developing and testing your applications. For example, dependency scanning lets you know if your application uses an external (open source) library that is known to be vulnerable. You can then take action to protect your application.

Overview

If you're using GitLab CI/CD, you can use dependency scanning to analyze your dependencies for known vulnerabilities. GitLab scans all dependencies, including transitive dependencies (also known as nested dependencies). You can take advantage of dependency scanning by either:

Including the dependency scanning template in your existing .gitlab-ci.yml file.
Implicitly using the auto dependency scanning provided by Auto DevOps.

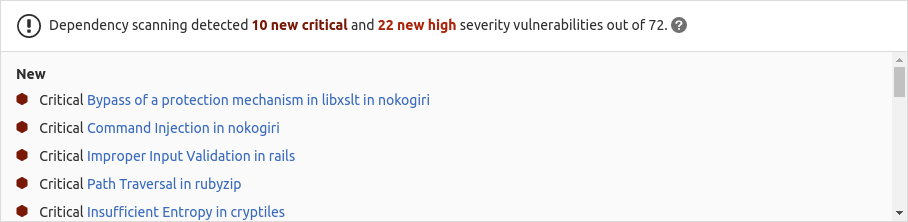

GitLab checks the dependency scanning report, compares the found vulnerabilities between the source and target branches, and shows the information on the merge request. The results are sorted by the severity of the vulnerability.

Requirements

To run dependency scanning jobs, by default, you need GitLab Runner with the docker or kubernetes executor. If you're using the shared runners on GitLab.com, this is enabled by default.

WARNING: If you use your own runners, make sure your installed version of Docker is not 19.03.0. See troubleshooting information for details.

WARNING: Dependency Scanning does not support run-time installation of compilers and interpreters. If you have need of this, please explain why by filling out the survey here.

Supported languages and package managers

Dependency Scanning automatically detects the languages used in the repository. All analyzers matching the detected languages are run. There is usually no need to customize the selection of analyzers. We recommend not specifying the analyzers so you automatically use the full selection for best coverage, avoiding the need to make adjustments when there are deprecations or removals. However, you can override the selection using the variable DS_EXCLUDED_ANALYZERS.

The language detection relies on CI job rules and searches a maximum of two directory levels from the repository's root. For example, the gemnasium-dependency_scanning job is enabled if a repository contains either Gemfile, api/Gemfile, or api/client/Gemfile, but not if the only supported dependency file is api/v1/client/Gemfile.

The following languages and dependency managers are supported:

table.supported-languages tr:nth-child(even) { background-color: transparent; } table.supported-languages td { border-left: 1px solid #dbdbdb; border-right: 1px solid #dbdbdb; border-bottom: 1px solid #dbdbdb; } table.supported-languages tr td:first-child { border-left: 0; } table.supported-languages tr td:last-child { border-right: 0; } table.supported-languages ul { list-style-type: none; padding-left: 0px; margin-bottom: 0px; }

Language	Package Manager	Package Manager Versions	Supported files	Analyzer	Processes multiple files?
Ruby	Bundler	Any	`Gemfile.lock` `gems.locked`	Gemnasium	Y
Ruby	Bundler	Any	`Gemfile.lock`	bundler-audit	N
PHP	Composer	Any	`composer.lock`	Gemnasium	Y
C	Conan	Any	`conan.lock`	Gemnasium	Y
C++	Conan	Any	`conan.lock`	Gemnasium	Y
Go	Golang	Any	`go.sum`	Gemnasium	Y
Java	Gradle¹	Any	`build.gradle` `build.gradle.kts`	Gemnasium	N
Java	Maven	Any	`pom.xml`	Gemnasium	N
JavaScript	npm	Any	`package-lock.json` `npm-shrinkwrap.json`	Gemnasium	Y
	npm	Any	`package.json`	Retire.js	N
	yarn	1.x	`yarn.lock`	Gemnasium	Y
.NET	NuGet	>= 4.9	`packages.lock.json`	Gemnasium	Y
C#	NuGet	>= 4.9	`packages.lock.json`	Gemnasium	Y
Python	setuptools	Any	`setup.py`	Gemnasium	N
	pip	Any	`requirements.txt` `requirements.pip` `requires.txt`	Gemnasium	N
	Pipenv	Any	`Pipfile` `Pipfile.lock`²	Gemnasium	N
Scala	sbt³	Any	`build.sbt`	Gemnasium	N

Notes regarding supported languages and package managers

Although Gradle with Java 8 is supported, there are other issues such that Android project builds are not supported at this time. Please see the backlog issue Android support for Dependency Scanning (gemnasium-maven) for more details.
The presence of a Pipfile.lock file alone will not trigger the analyzer; the presence of a Pipfile is still required in order for the analyzer to be executed. However, if a Pipfile.lock file is found, it will be used by Gemnasium to scan the exact package versions listed in this file.

Support for Pipfile.lock files without requiring the presence of a Pipfile will be implemented in the following upcoming issue: Dependency Scanning of Pipfile.lock without installing project dependencies.
Support for sbt 1.3 and above was added in GitLab 13.9.

How analyzers are triggered

GitLab relies on rules:exists to start the relevant analyzers for the languages detected by the presence of the Supported files in the repository as shown in the table above.

The current detection logic limits the maximum search depth to two levels. For example, the gemnasium-dependency_scanning job is enabled if a repository contains either a Gemfile.lock, api/Gemfile.lock, or api/client/Gemfile.lock, but not if the only supported dependency file is api/v1/client/Gemfile.lock.

How multiple files are processed

NOTE: If you've run into problems while scanning multiple files, please contribute a comment to this issue.

Ruby

The following analyzers are executed, each of which have different behavior when processing multiple files:

Gemnasium

Supports multiple lockfiles.
bundler-audit

Does not support multiple lockfiles. When multiple lockfiles exist, bundler-audit analyzes the first lockfile discovered while traversing the directory tree in alphabetical order.

We execute both analyzers because they use different sources of vulnerability data. The result is more comprehensive analysis than if only one was executed.

Python

We only execute one installation in the directory where a requirements file has been detected, such as requirements.txt or any variation of this file (for example, requirements.pip or requires.txt).

Java and Scala

We only execute one build in the directory where a build file has been detected, such as build.sbt or build.gradle. Please note, we support the following types of Java project structures:

JavaScript

The following analyzers are executed, each of which have different behavior when processing multiple files:

Gemnasium

Supports multiple lockfiles
Retire.js

Does not support multiple lockfiles. When multiple lockfiles exist, Retire.js analyzes the first lockfile discovered while traversing the directory tree in alphabetical order.

We execute both analyzers because they use different sources of vulnerability data. The result is more comprehensive analysis than if only one was executed.

PHP, Go, C, C++, .NET, C#

The analyzer for these languages supports multiple lockfiles.

Future support for additional languages

Plans are underway for supporting the following languages, dependency managers, and dependency files. For details, see the issue link for each. For workarounds, see the Troubleshooting section

Package Managers	Languages	Supported files	Scan tools	Issue
Poetry	Python	`poetry.lock`	Gemnasium	GitLab#7006

Contribute your scanner

The Security Scanner Integration documentation explains how to integrate other security scanners into GitLab.

Configuration

To enable dependency scanning for GitLab 11.9 and later, you must include the Dependency-Scanning.gitlab-ci.yml template that is provided as a part of your GitLab installation. For GitLab versions earlier than 11.9, you can copy and use the job as defined that template.

Add the following to your .gitlab-ci.yml file:

include:
  - template: Dependency-Scanning.gitlab-ci.yml

The included template creates dependency scanning jobs in your CI/CD pipeline and scans your project's source code for possible vulnerabilities. The results are saved as a dependency scanning report artifact that you can later download and analyze. Due to implementation limitations, we always take the latest dependency scanning artifact available.

Enable Dependency Scanning via an automatic merge request

Introduced in GitLab 14.1.

Enabled with sec_dependency_scanning_ui_enable flag for self-managed GitLab in GitLab 14.1 and is ready for production use.

Feature flag sec_dependency_scanning_ui_enable removed in GitLab 14.2.

To enable Dependency Scanning in a project, you can create a merge request from the Security Configuration page.

In the project where you want to enable Dependency Scanning, navigate to Security & Compliance > Configuration.
In the Dependency Scanning row, select Configure via Merge Request.

This automatically creates a merge request with the changes necessary to enable Dependency Scanning that you can review and merge to complete the configuration.

Customizing the dependency scanning settings

The dependency scanning settings can be changed through CI/CD variables by using the variables parameter in .gitlab-ci.yml. For example:

include:
  - template: Dependency-Scanning.gitlab-ci.yml

variables:
  SECURE_LOG_LEVEL: error

Because template is evaluated before the pipeline configuration, the last mention of the variable takes precedence.

Overriding dependency scanning jobs

WARNING: Beginning in GitLab 13.0, the use of only and except is no longer supported. When overriding the template, you must use rules instead.

To override a job definition (for example, to change properties like variables or dependencies), declare a new job with the same name as the one to override. Place this new job after the template inclusion and specify any additional keys under it. For example, this disables DS_REMEDIATE for the gemnasium analyzer:

include:
  - template: Dependency-Scanning.gitlab-ci.yml

gemnasium-dependency_scanning:
  variables:
    DS_REMEDIATE: "false"

To override the dependencies: [] attribute, add an override job as above, targeting this attribute:

include:
  - template: Dependency-Scanning.gitlab-ci.yml

gemnasium-dependency_scanning:
  dependencies: ["build"]

Available CI/CD variables

Dependency scanning can be configured using environment variables.

Configuring dependency scanning

The following variables allow configuration of global dependency scanning settings.

CI/CD variables	Description
`ADDITIONAL_CA_CERT_BUNDLE`	Bundle of CA certs to trust. The bundle of certificates provided here is also used by other tools during the scanning process, such as `git`, `yarn`, or `npm`. See Using a custom SSL CA certificate authority for more details.
`DS_EXCLUDED_ANALYZERS`	Specify the analyzers (by name) to exclude from Dependency Scanning. For more information, see Dependency Scanning Analyzers.
`DS_DEFAULT_ANALYZERS`	(DEPRECATED - use `DS_EXCLUDED_ANALYZERS` instead) Override the names of the official default images. For more information, see Dependency Scanning Analyzers.
`DS_EXCLUDED_PATHS`	Exclude vulnerabilities from output based on the paths. A comma-separated list of patterns. Patterns can be globs, or file or folder paths (for example, `doc,spec`). Parent directories also match patterns. Default: `"spec, test, tests, tmp"`.
`SECURE_ANALYZERS_PREFIX`	Override the name of the Docker registry providing the official default images (proxy). Read more about customizing analyzers.
`SECURE_LOG_LEVEL`	Set the minimum logging level. Messages of this logging level or higher are output. From highest to lowest severity, the logging levels are: `fatal`, `error`, `warn`, `info`, `debug`. Introduced in GitLab 13.1. Default: `info`.

Configuring specific analyzers used by dependency scanning

The following variables are used for configuring specific analyzers (used for a specific language/framework).

CI/CD variable	Analyzer	Default	Description
`BUNDLER_AUDIT_UPDATE_DISABLED`	`bundler-audit`	`"false"`	Disable automatic updates for the `bundler-audit` analyzer. Use if you're running dependency scanning in an offline, air-gapped environment.
`BUNDLER_AUDIT_ADVISORY_DB_URL`	`bundler-audit`	`https://github.com/rubysec/ruby-advisory-db`	URL of the advisory database used by bundler-audit.
`BUNDLER_AUDIT_ADVISORY_DB_REF_NAME`	`bundler-audit`	`master`	Git ref for the advisory database specified by `BUNDLER_AUDIT_ADVISORY_DB_URL`.
`GEMNASIUM_DB_LOCAL_PATH`	`gemnasium`	`/gemnasium-db`	Path to local Gemnasium database.
`GEMNASIUM_DB_UPDATE_DISABLED`	`gemnasium`	`"false"`	Disable automatic updates for the `gemnasium-db` advisory database (For usage see: examples)
`GEMNASIUM_DB_REMOTE_URL`	`gemnasium`	`https://gitlab.com/gitlab-org/security-products/gemnasium-db.git`	Repository URL for fetching the Gemnasium database.
`GEMNASIUM_DB_REF_NAME`	`gemnasium`	`master`	Branch name for remote repository database. `GEMNASIUM_DB_REMOTE_URL` is required.
`DS_REMEDIATE`	`gemnasium`	`"true"`	Enable automatic remediation of vulnerable dependencies.
`DS_JAVA_VERSION`	`gemnasium-maven`	`11`	Version of Java. Available versions: `8`, `11`, `13`, `14`, `15`, `16`.
`MAVEN_CLI_OPTS`	`gemnasium-maven`	`"-DskipTests --batch-mode"`	List of command line arguments that are passed to `maven` by the analyzer. See an example for using private repositories.
`GRADLE_CLI_OPTS`	`gemnasium-maven`		List of command line arguments that are passed to `gradle` by the analyzer.
`SBT_CLI_OPTS`	`gemnasium-maven`		List of command-line arguments that the analyzer passes to `sbt`.
`PIP_INDEX_URL`	`gemnasium-python`	`https://pypi.org/simple`	Base URL of Python Package Index.
`PIP_EXTRA_INDEX_URL`	`gemnasium-python`		Array of extra URLs of package indexes to use in addition to `PIP_INDEX_URL`. Comma-separated. Warning: Please read the following security consideration when using this environment variable.
`PIP_REQUIREMENTS_FILE`	`gemnasium-python`		Pip requirements file to be scanned.
`DS_PIP_VERSION`	`gemnasium-python`		Force the install of a specific pip version (example: `"19.3"`), otherwise the pip installed in the Docker image is used. (Introduced in GitLab 12.7)
`DS_PIP_DEPENDENCY_PATH`	`gemnasium-python`		Path to load Python pip dependencies from. (Introduced in GitLab 12.2)
`DS_PYTHON_VERSION`	`retire.js`		Version of Python. If set to 2, dependencies are installed using Python 2.7 instead of Python 3.6. (Introduced in GitLab 12.1, removed in GitLab 13.7).
`RETIREJS_JS_ADVISORY_DB`	`retire.js`	`https://raw.githubusercontent.com/RetireJS/retire.js/master/repository/jsrepository.json`	Path or URL to `retire.js` JS vulnerability data file. Note that if the URL hosting the data file uses a custom SSL certificate, for example in an offline installation, you can pass the certificate in the `ADDITIONAL_CA_CERT_BUNDLE` variable.
`RETIREJS_NODE_ADVISORY_DB`	`retire.js`	`https://raw.githubusercontent.com/RetireJS/retire.js/master/repository/npmrepository.json`	Path or URL to `retire.js` node vulnerability data file. Note that if the URL hosting the data file uses a custom SSL certificate, for example in an offline installation, you can pass the certificate in the `ADDITIONAL_CA_CERT_BUNDLE` variable.
`RETIREJS_ADVISORY_DB_INSECURE`	`retire.js`	`false`	Enable fetching remote JS and Node vulnerability data files (defined by the `RETIREJS_JS_ADVISORY_DB` and `RETIREJS_NODE_ADVISORY_DB` variables) from hosts using an insecure or self-signed SSL (TLS) certificate.

Using a custom SSL CA certificate authority

You can use the ADDITIONAL_CA_CERT_BUNDLE CI/CD variable to configure a custom SSL CA certificate authority. The ADDITIONAL_CA_CERT_BUNDLE value should contain the text representation of the X.509 PEM public-key certificate. For example, to configure this value in the .gitlab-ci.yml file, use the following:

variables:
  ADDITIONAL_CA_CERT_BUNDLE: |
      -----BEGIN CERTIFICATE-----
      MIIGqTCCBJGgAwIBAgIQI7AVxxVwg2kch4d56XNdDjANBgkqhkiG9w0BAQsFADCB
      ...
      jWgmPqF3vUbZE0EyScetPJquRFRKIesyJuBFMAs=
      -----END CERTIFICATE-----

The ADDITIONAL_CA_CERT_BUNDLE value can also be configured as a custom variable in the UI, either as a file, which requires the path to the certificate, or as a variable, which requires the text representation of the certificate.

Using private Maven repositories

If your private Maven repository requires login credentials, you can use the MAVEN_CLI_OPTS CI/CD variable.

Interacting with the vulnerabilities

Once a vulnerability is found, you can interact with it. Read more on how to address the vulnerabilities.

Solutions for vulnerabilities

Some vulnerabilities can be fixed by applying the solution that GitLab automatically generates. Read more about the solutions for vulnerabilities.

Security Dashboard

The Security Dashboard is a good place to get an overview of all the security vulnerabilities in your groups, projects and pipelines. Read more about the Security Dashboard.

Vulnerabilities database update

For more information about the vulnerabilities database update, see the maintenance table.

Dependency List

An additional benefit of dependency scanning is the ability to view your project's dependencies and their known vulnerabilities. Read more about the Dependency List.

Reports JSON format

The dependency scanning tool emits a JSON report file. For more information, see the schema for this report.

Here's an example dependency scanning report:

{
  "version": "2.0",
  "vulnerabilities": [
    {
      "id": "51e83874-0ff6-4677-a4c5-249060554eae",
      "category": "dependency_scanning",
      "name": "Regular Expression Denial of Service",
      "message": "Regular Expression Denial of Service in debug",
      "description": "The debug module is vulnerable to regular expression denial of service when untrusted user input is passed into the `o` formatter. It takes around 50k characters to block for 2 seconds making this a low severity issue.",
      "severity": "Unknown",
      "solution": "Upgrade to latest versions.",
      "scanner": {
        "id": "gemnasium",
        "name": "Gemnasium"
      },
      "location": {
        "file": "yarn.lock",
        "dependency": {
          "package": {
            "name": "debug"
          },
          "version": "1.0.5"
        }
      },
      "identifiers": [
        {
          "type": "gemnasium",
          "name": "Gemnasium-37283ed4-0380-40d7-ada7-2d994afcc62a",
          "value": "37283ed4-0380-40d7-ada7-2d994afcc62a",
          "url": "https://deps.sec.gitlab.com/packages/npm/debug/versions/1.0.5/advisories"
        }
      ],
      "links": [
        {
          "url": "https://nodesecurity.io/advisories/534"
        },
        {
          "url": "https://github.com/visionmedia/debug/issues/501"
        },
        {
          "url": "https://github.com/visionmedia/debug/pull/504"
        }
      ]
    },
    {
      "id": "5d681b13-e8fa-4668-957e-8d88f932ddc7",
      "category": "dependency_scanning",
      "name": "Authentication bypass via incorrect DOM traversal and canonicalization",
      "message": "Authentication bypass via incorrect DOM traversal and canonicalization in saml2-js",
      "description": "Some XML DOM traversal and canonicalization APIs may be inconsistent in handling of comments within XML nodes. Incorrect use of these APIs by some SAML libraries results in incorrect parsing of the inner text of XML nodes such that any inner text after the comment is lost prior to cryptographically signing the SAML message. Text after the comment, therefore, has no impact on the signature on the SAML message.\r\n\r\nA remote attacker can modify SAML content for a SAML service provider without invalidating the cryptographic signature, which may allow attackers to bypass primary authentication for the affected SAML service provider.",
      "severity": "Unknown",
      "solution": "Upgrade to fixed version.\r\n",
      "scanner": {
        "id": "gemnasium",
        "name": "Gemnasium"
      },
      "location": {
        "file": "yarn.lock",
        "dependency": {
          "package": {
            "name": "saml2-js"
          },
          "version": "1.5.0"
        }
      },
      "identifiers": [
        {
          "type": "gemnasium",
          "name": "Gemnasium-9952e574-7b5b-46fa-a270-aeb694198a98",
          "value": "9952e574-7b5b-46fa-a270-aeb694198a98",
          "url": "https://deps.sec.gitlab.com/packages/npm/saml2-js/versions/1.5.0/advisories"
        },
        {
          "type": "cve",
          "name": "CVE-2017-11429",
          "value": "CVE-2017-11429",
          "url": "https://cve.mitre.org/cgi-bin/cvename.cgi?name=CVE-2017-11429"
        }
      ],
      "links": [
        {
          "url": "https://github.com/Clever/saml2/commit/3546cb61fd541f219abda364c5b919633609ef3d#diff-af730f9f738de1c9ad87596df3f6de84R279"
        },
        {
          "url": "https://github.com/Clever/saml2/issues/127"
        },
        {
          "url": "https://www.kb.cert.org/vuls/id/475445"
        }
      ]
    }
  ],
  "remediations": [
    {
      "fixes": [
        {
          "id": "5d681b13-e8fa-4668-957e-8d88f932ddc7",
        }
      ],
      "summary": "Upgrade saml2-js",
      "diff": "ZGlmZiAtLWdpdCBhL...OR0d1ZUc2THh3UT09Cg==" // some content is omitted for brevity
    }
  ]
}

Versioning and release process

Please check the Release Process documentation.

Contributing to the vulnerability database

You can search the gemnasium-db project to find a vulnerability in the Gemnasium database. You can also submit new vulnerabilities.

Running dependency scanning in an offline environment

For self-managed GitLab instances in an environment with limited, restricted, or intermittent access to external resources through the internet, some adjustments are required for dependency scanning jobs to run successfully. For more information, see Offline environments.

Requirements for offline dependency scanning

Here are the requirements for using dependency scanning in an offline environment:

GitLab Runner with the docker or kubernetes executor.
Docker Container Registry with locally available copies of dependency scanning analyzer images.
If you have a limited access environment you need to allow access, such as using a proxy, to the advisory database: https://gitlab.com/gitlab-org/security-products/gemnasium-db.git. If you are unable to permit access to https://gitlab.com/gitlab-org/security-products/gemnasium-db.git you must host an offline copy of this git repository and set the GEMNASIUM_DB_REMOTE_URL CI/CD variable to the URL of this repository. For more information on configuration variables, see Dependency Scanning.

This advisory database is constantly being updated, so you must periodically sync your local copy with GitLab.
Only if scanning Ruby projects: Host an offline Git copy of the advisory database.
Only if scanning npm/yarn projects: Host an offline copy of the retire.js node and js advisory databases.

Note that GitLab Runner has a default pull policy of always, meaning the runner tries to pull Docker images from the GitLab container registry even if a local copy is available. The GitLab Runner pull_policy can be set to if-not-present in an offline environment if you prefer using only locally available Docker images. However, we recommend keeping the pull policy setting to always if not in an offline environment, as this enables the use of updated scanners in your CI/CD pipelines.

Make GitLab dependency scanning analyzer images available inside your Docker registry

For dependency scanning with all supported languages and frameworks, import the following default dependency scanning analyzer images from registry.gitlab.com into your local Docker container registry:

registry.gitlab.com/gitlab-org/security-products/analyzers/gemnasium:2
registry.gitlab.com/gitlab-org/security-products/analyzers/gemnasium-maven:2
registry.gitlab.com/gitlab-org/security-products/analyzers/gemnasium-python:2
registry.gitlab.com/gitlab-org/security-products/analyzers/retire.js:2
registry.gitlab.com/gitlab-org/security-products/analyzers/bundler-audit:2

The process for importing Docker images into a local offline Docker registry depends on your network security policy. Please consult your IT staff to find an accepted and approved process by which external resources can be imported or temporarily accessed. These scanners are periodically updated with new definitions, and you may be able to make occasional updates on your own.

For details on saving and transporting Docker images as a file, see Docker's documentation on docker save, docker load, docker export, and docker import.

Support for Custom Certificate Authorities

Support for custom certificate authorities was introduced in the following versions.

Analyzer	Version
`gemnasium`	v2.8.0
`gemnasium-maven`	v2.9.0
`gemnasium-python`	v2.7.0
`retire.js`	v2.4.0
`bundler-audit`	v2.4.0

Set dependency scanning CI/CD job variables to use local dependency scanning analyzers

Add the following configuration to your .gitlab-ci.yml file. You must change the value of SECURE_ANALYZERS_PREFIX to refer to your local Docker container registry. You must also change the value of GEMNASIUM_DB_REMOTE_URL to the location of your offline Git copy of the gemnasium-db advisory database:

include:
  - template: Dependency-Scanning.gitlab-ci.yml

variables:
  SECURE_ANALYZERS_PREFIX: "docker-registry.example.com/analyzers"
  GEMNASIUM_DB_REMOTE_URL: "gitlab.example.com/gemnasium-db.git"

See explanations of the variables above in the configuration section.

Specific settings for languages and package managers

See the following sections for configuring specific languages and package managers.

JavaScript (npm and yarn) projects

Add the following to the variables section of .gitlab-ci.yml:

RETIREJS_JS_ADVISORY_DB: "example.com/jsrepository.json"
RETIREJS_NODE_ADVISORY_DB: "example.com/npmrepository.json"

Ruby (gem) projects

Add the following to the variables section of .gitlab-ci.yml:

BUNDLER_AUDIT_ADVISORY_DB_REF_NAME: "master"
BUNDLER_AUDIT_ADVISORY_DB_URL: "gitlab.example.com/ruby-advisory-db.git"

Python (setup tools)

When using self-signed certificates for your private PyPi repository, no extra job configuration (aside from the template .gitlab-ci.yml above) is needed. However, you must update your setup.py to ensure that it can reach your private repository. Here is an example configuration:

Update setup.py to create a dependency_links attribute pointing at your private repository for each dependency in the install_requires list:
```
install_requires=['pyparsing>=2.0.3'],
dependency_links=['https://pypi.example.com/simple/pyparsing'],
```

Fetch the certificate from your repository URL and add it to the project:

echo -n | openssl s_client -connect pypi.example.com:443 | sed -ne '/-BEGIN CERTIFICATE-/,/-END CERTIFICATE-/p' > internal.crt

Point setup.py at the newly downloaded certificate:

import setuptools.ssl_support
setuptools.ssl_support.cert_paths = ['internal.crt']

Hosting a copy of the gemnasium_db advisory database

The gemnasium_db Git repository is used by gemnasium, gemnasium-maven, and gemnasium-python as the source of vulnerability data. This repository updates at scan time to fetch the latest advisories. However, due to a restricted networking environment, running this update is sometimes not possible. In this case, a user can do one of the following:

Host a copy of the advisory database
Use a local clone

Host a copy of the advisory database

If gemnasium-db is not reachable from within the environment, the user can host their own Git copy. Then the analyzer can be instructed to update the database from the user's copy by using GEMNASIUM_DB_REMOTE_URL:

variables:
  GEMNASIUM_DB_REMOTE_URL: https://users-own-copy.example.com/gemnasium-db/.git

...

Use a local clone

If a hosted copy is not possible, then the user can clone gemnasium-db or create an archive before the scan and point the analyzer to the directory (using: GEMNASIUM_DB_LOCAL_PATH). Turn off the analyzer's self-update mechanism (using: GEMNASIUM_DB_UPDATE_DISABLED). In this example, the database directory is created in the before_script, before the gemnasium analyzer's scan job:

...

gemnasium-dependency_scanning:
  variables:
    GEMNASIUM_DB_LOCAL_PATH: ./gemnasium-db-local
    GEMNASIUM_DB_UPDATE_DISABLED: "true"
  before_script:
    - mkdir $GEMNASIUM_DB_LOCAL_PATH
    - tar -xzf gemnasium_db.tar.gz -C $GEMNASIUM_DB_LOCAL_PATH

Warnings

Python projects

Extra care needs to be taken when using the PIP_EXTRA_INDEX_URL environment variable due to a possible exploit documented by CVE-2018-20225:

An issue was discovered in pip (all versions) because it installs the version with the highest version number, even if the user had intended to obtain a private package from a private index. This only affects use of the PIP_EXTRA_INDEX_URL option, and exploitation requires that the package does not already exist in the public index (and thus the attacker can put the package there with an arbitrary version number).

Limitations

Referencing local dependencies using a path in JavaScript projects

The Retire.js analyzer doesn't support dependency references made with local paths in the package.json of JavaScript projects. The dependency scan outputs the following error for such references:

ERROR: Could not find dependencies: <dependency-name>. You may need to run npm install

As a workaround, add the retire.js analyzer to DS_EXCLUDED_ANALYZERS.

Troubleshooting

Working around missing support for certain languages or package managers

As noted in the "Supported languages" section some dependency definition files are not yet supported. However, Dependency Scanning can be achieved if the language, a package manager, or a third-party tool can convert the definition file into a supported format.

Generally, the approach is the following:

Define a dedicated converter job in your .gitlab-ci.yml file. Use a suitable Docker image, script, or both to facilitate the conversion.
Let that job upload the converted, supported file as an artifact.
Add dependencies: [<your-converter-job>] to your dependency_scanning job to make use of the converted definitions files.

For example, the unsupported poetry.lock file can be converted to the supported requirements.txt as follows.

include:
  - template: Dependency-Scanning.gitlab-ci.yml

stages:
  - test

variables:
  PIP_REQUIREMENTS_FILE: "requirements-converted.txt"

gemnasium-python-dependency_scanning:
  # Work around https://gitlab.com/gitlab-org/gitlab/-/issues/7006
  before_script:
    - pip install poetry  # Or via another method: https://python-poetry.org/docs/#installation
    - poetry export --output="$PIP_REQUIREMENTS_FILE"
    - rm poetry.lock pyproject.toml

`Error response from daemon: error processing tar file: docker-tar: relocation error`

This error occurs when the Docker version that runs the dependency scanning job is 19.03.0. Consider updating to Docker 19.03.1 or greater. Older versions are not affected. Read more in this issue.

Getting warning message `gl-dependency-scanning-report.json: no matching files`

For information on this, see the general Application Security troubleshooting section.

Limitation when using rules:exists

The dependency scanning CI template uses the rules:exists syntax. This directive is limited to 10000 checks and always returns true after reaching this number. Because of this, and depending on the number of files in your repository, a dependency scanning job might be triggered even if the scanner doesn't support your project.

Issues building projects with npm or yarn packages relying on Python 2

Python 2 was removed from the retire.js analyzer in GitLab 13.7 (analyzer version 2.10.1). Projects using packages with a dependency on this version of Python should use retire.js version 2.10.0 or lower (for example, registry.gitlab.com/gitlab-org/security-products/analyzers/retire.js:2.10.0).

Error: `dependency_scanning is used for configuration only, and its script should not be executed`

For information on this, see the GitLab Secure troubleshooting section.

Import multiple certificates for Java-based projects

The gemnasium-maven analyzer reads the contents of the ADDITIONAL_CA_CERT_BUNDLE variable using keytool, which imports either a single certificate or a certificate chain. Multiple unrelated certificates are ignored and only the first one is imported by keytool.

To add multiple unrelated certificates to the analyzer, you can declare a before_script such as this in the definition of the gemnasium-maven-dependency_scanning job:

gemnasium-maven-dependency_scanning:
  before_script:
    - . $HOME/.bashrc # make the java tools available to the script
    - OIFS="$IFS"; IFS=""; echo $ADDITIONAL_CA_CERT_BUNDLE > multi.pem; IFS="$OIFS" # write ADDITIONAL_CA_CERT_BUNDLE variable to a PEM file
    - csplit -z --digits=2 --prefix=cert multi.pem "/-----END CERTIFICATE-----/+1" "{*}" # split the file into individual certificates
    - for i in `ls cert*`; do keytool -v -importcert -alias "custom-cert-$i" -file $i -trustcacerts -noprompt -storepass changeit -keystore /opt/asdf/installs/java/adoptopenjdk-11.0.7+10.1/lib/security/cacerts 1>/dev/null 2>&1 || true; done # import each certificate using keytool (note the keystore location is related to the Java version being used and should be changed accordingly for other versions)
    - unset ADDITIONAL_CA_CERT_BUNDLE # unset the variable so that the analyzer doesn't duplicate the import
